Tri Axle Trailer + Hydraulic Crane

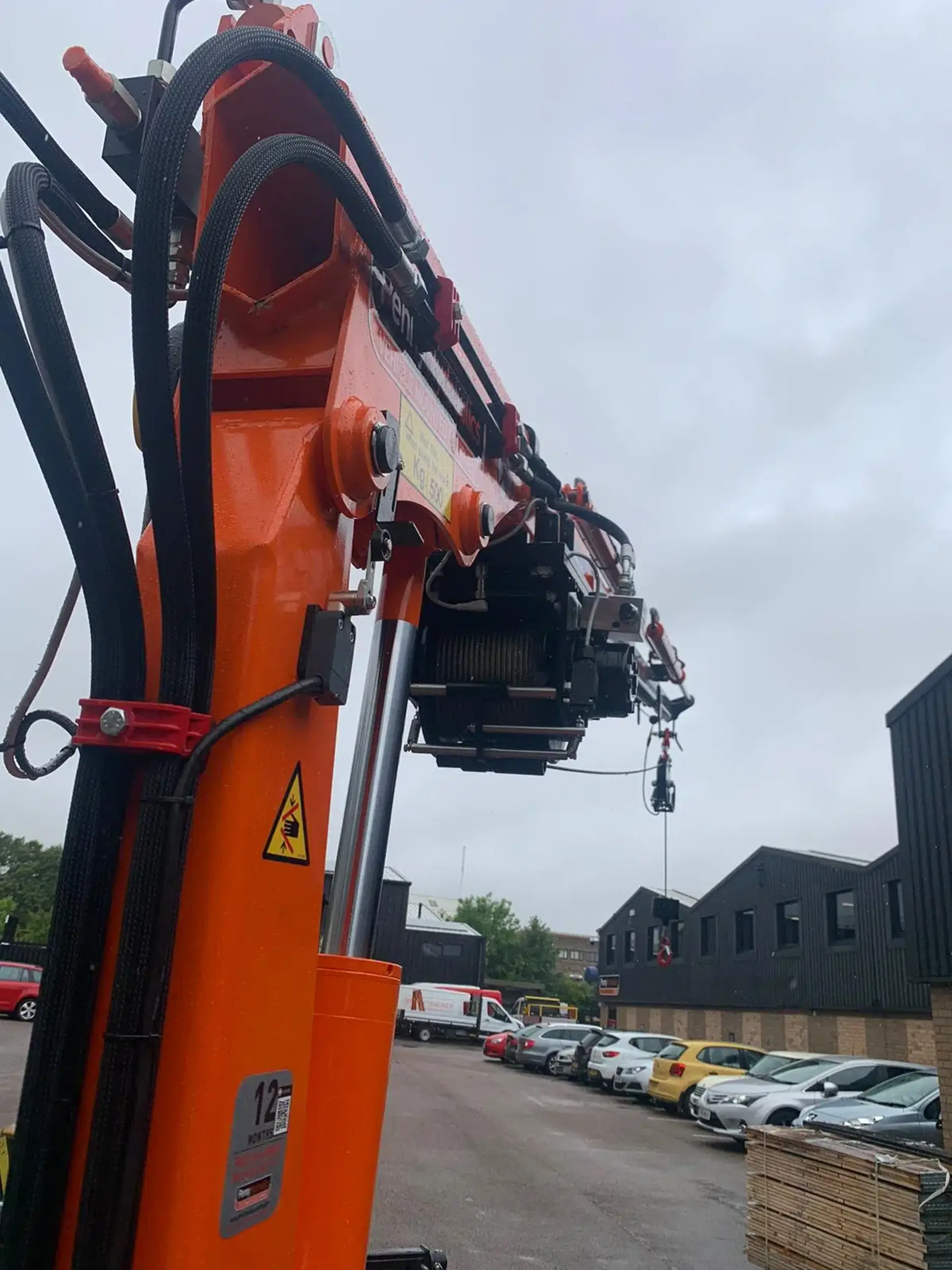

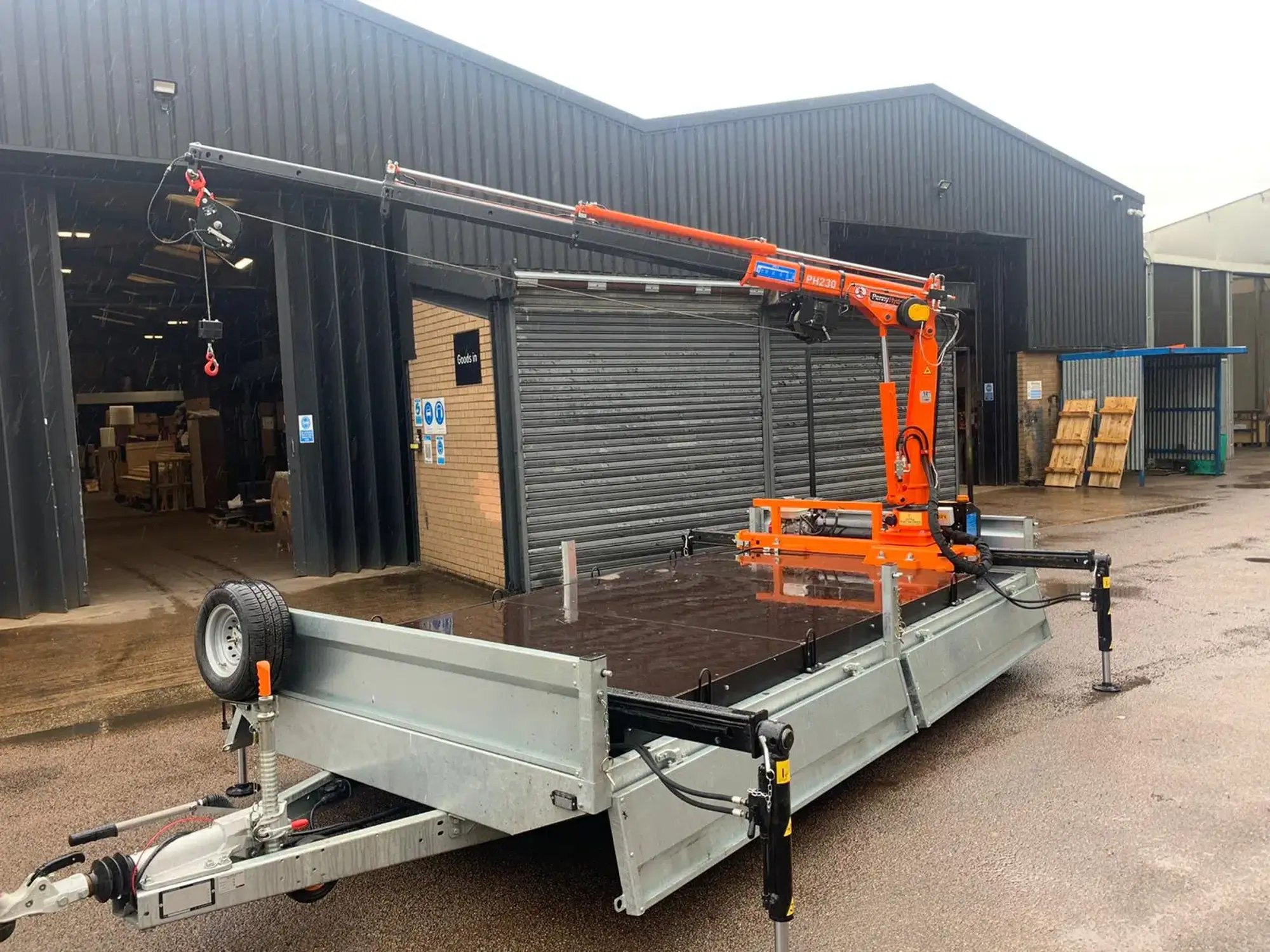

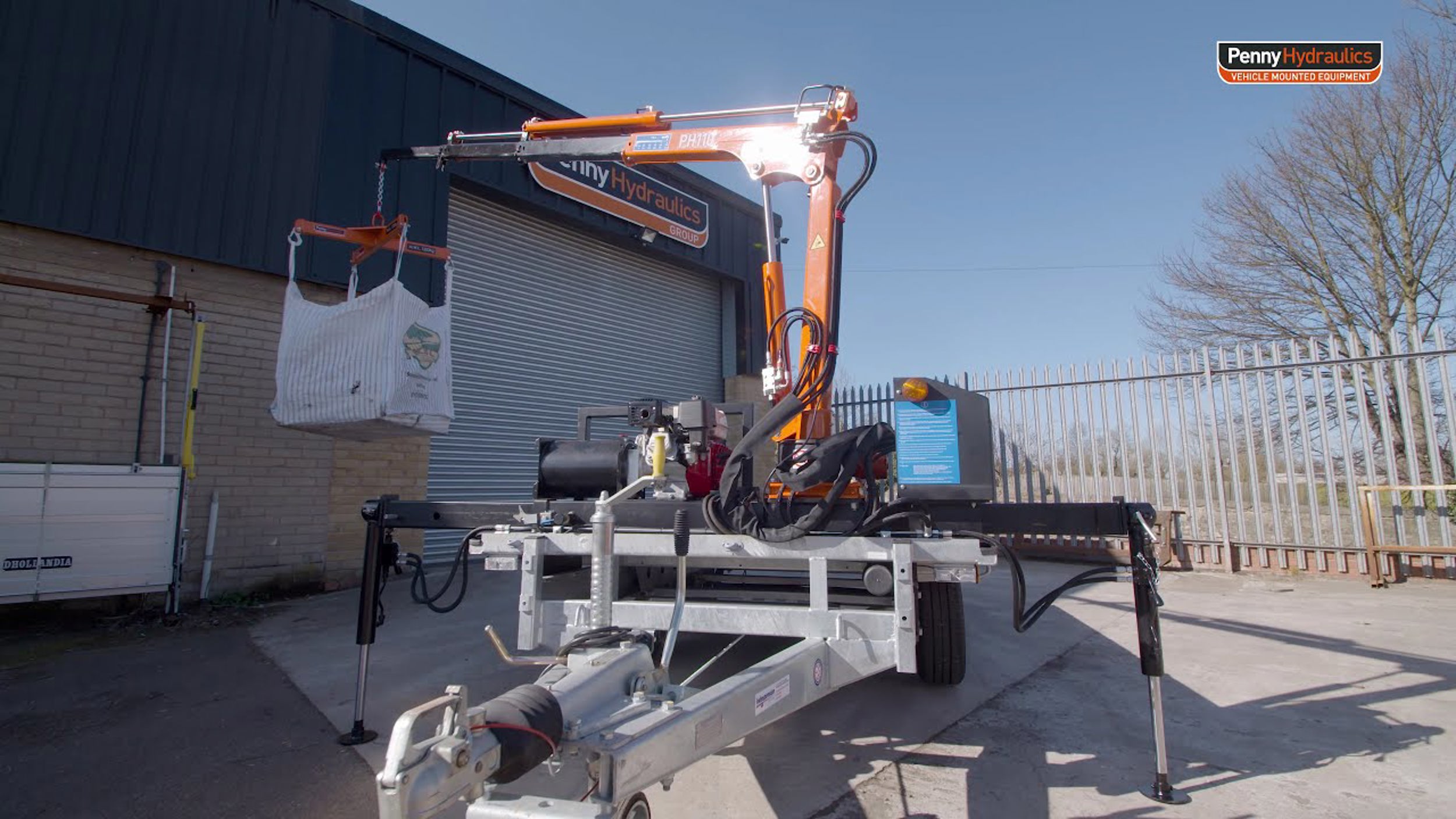

Bespoke requirements PRG 14’ Tri Axle Trailer with your choice of PH110, PH150, or PH180 hydraulic crane fitted. Boasting a huge 1800kg max working load and capable of lifting 500kg at 4.2m, the trailer crane combo has an approximate remaining payload of 1740kg depending on trailer options.

Smaller cranes available on request.

Fully tested and issued with certificate of examination.

PH Hydraulic Crane Options:

• PH110 – 990kg Max Working Load
• PH150 – 1300kg Max Working Load
• PH180 – 1500kg Max Working Load
• PH230 – 1800kg Max Working Load

PRG 14’ Tri Axle Trailer

• 14 x 6’6ft trailer
• Tri axle
• Fully galvanised

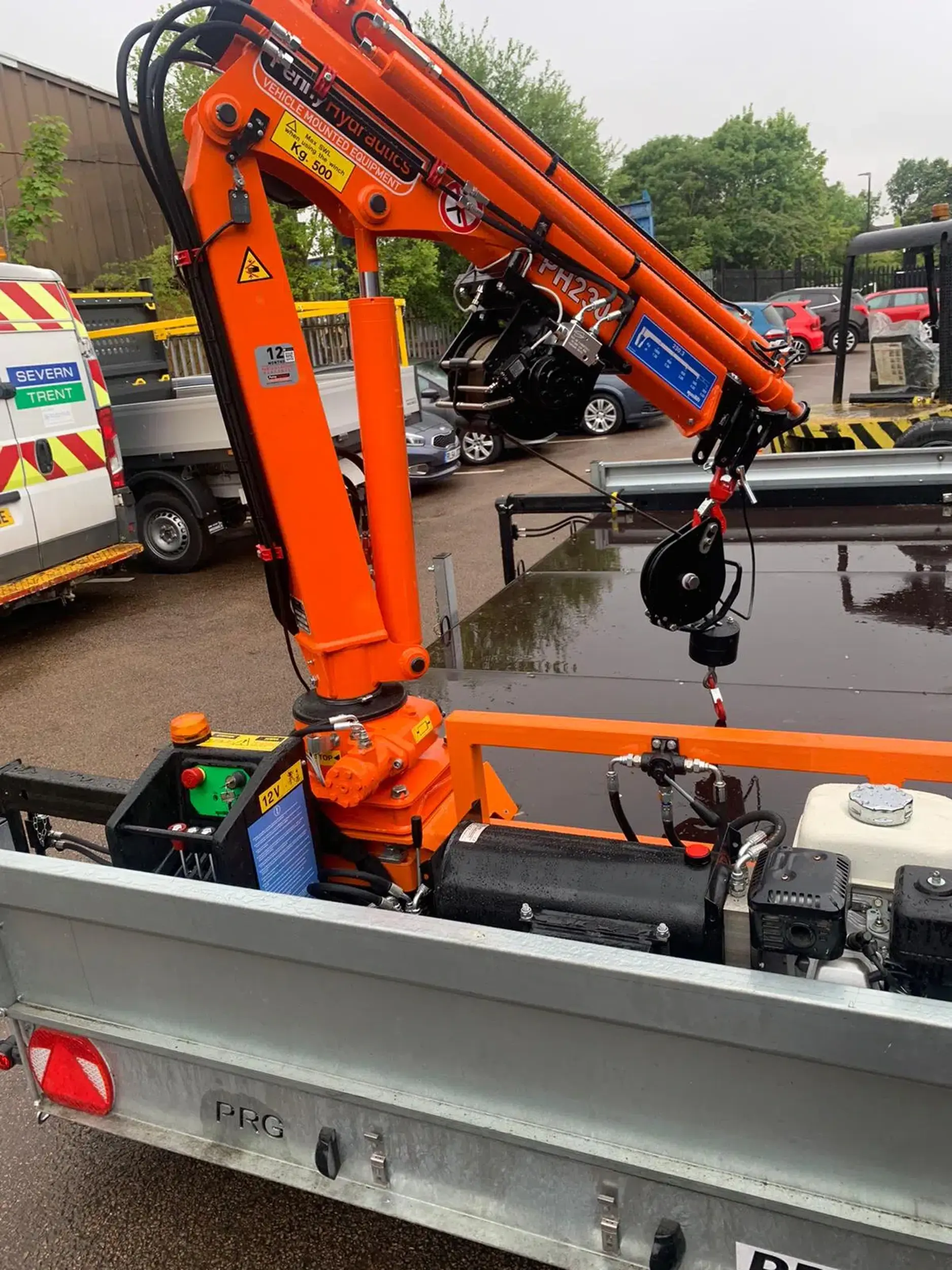

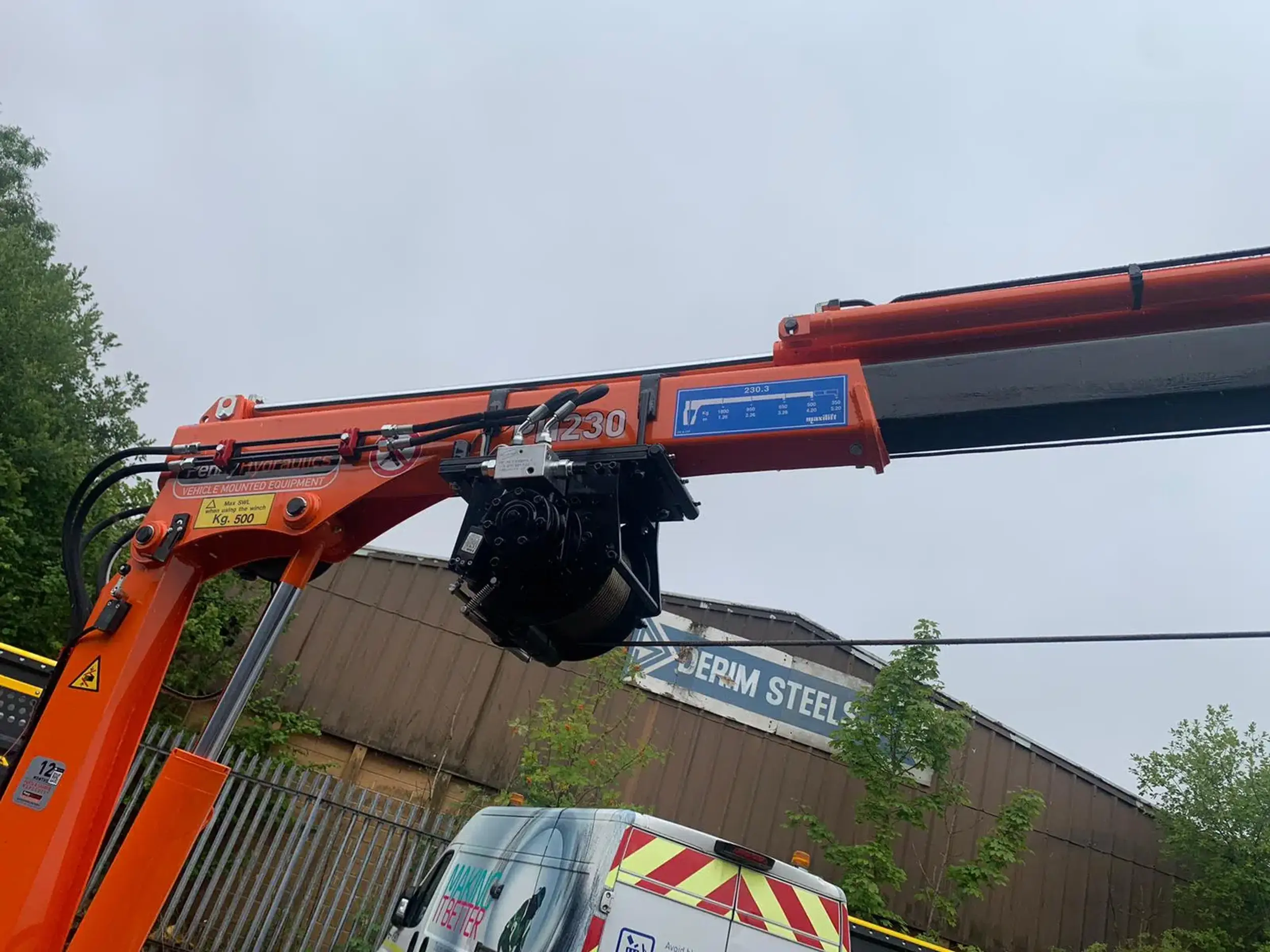

Combined (using PH230 as an example)

• 120kg nose weight at 420mm (in line with current legislations and fully consumer market compliant)

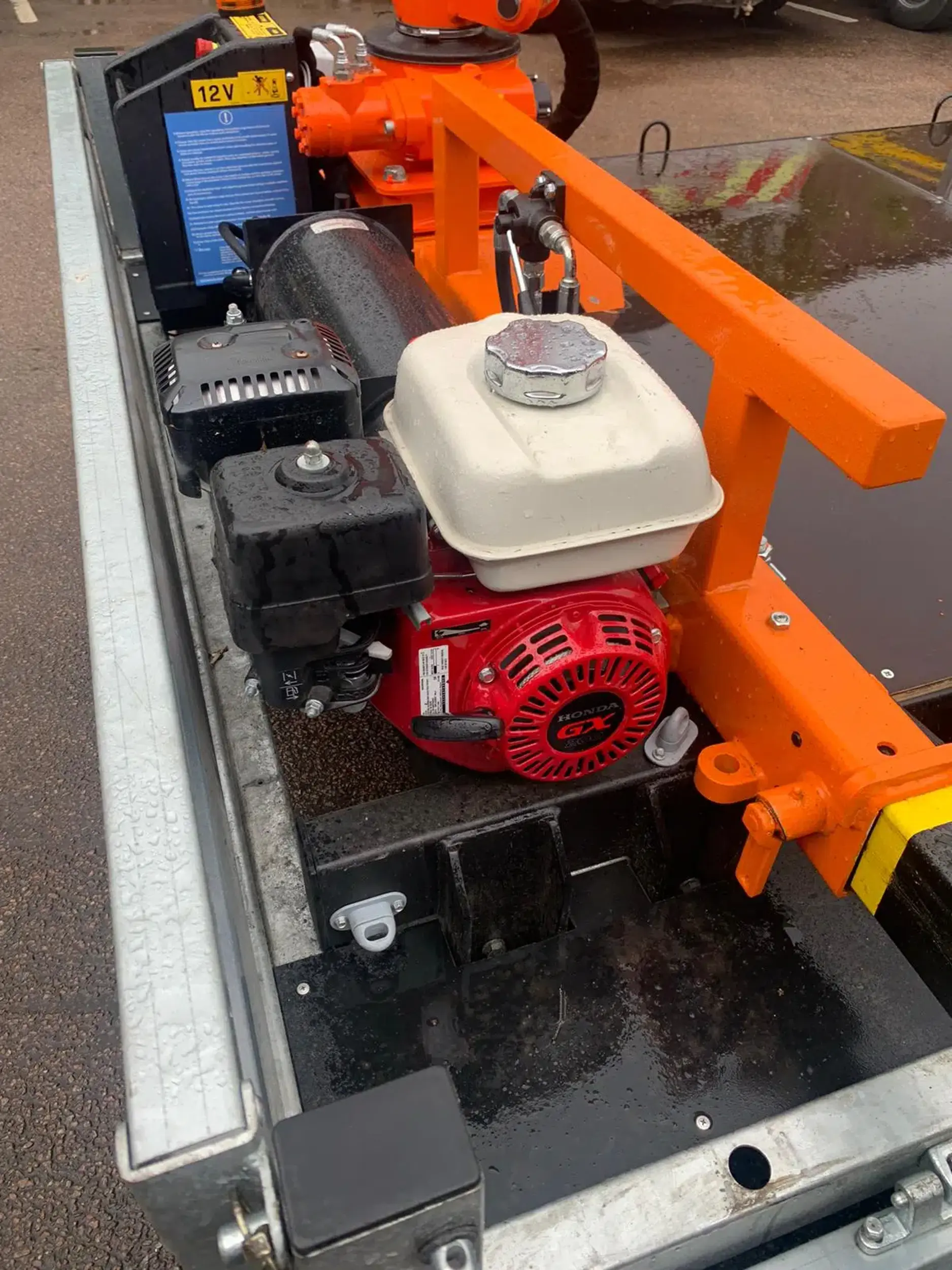

• Legs not stowed hazard beacon and electronics, powered by the onboard battery
• Total weight 2222kg
• Can be used independently from the vehicle.
