Twin Axle Trailer + Hydraulic Crane
Description

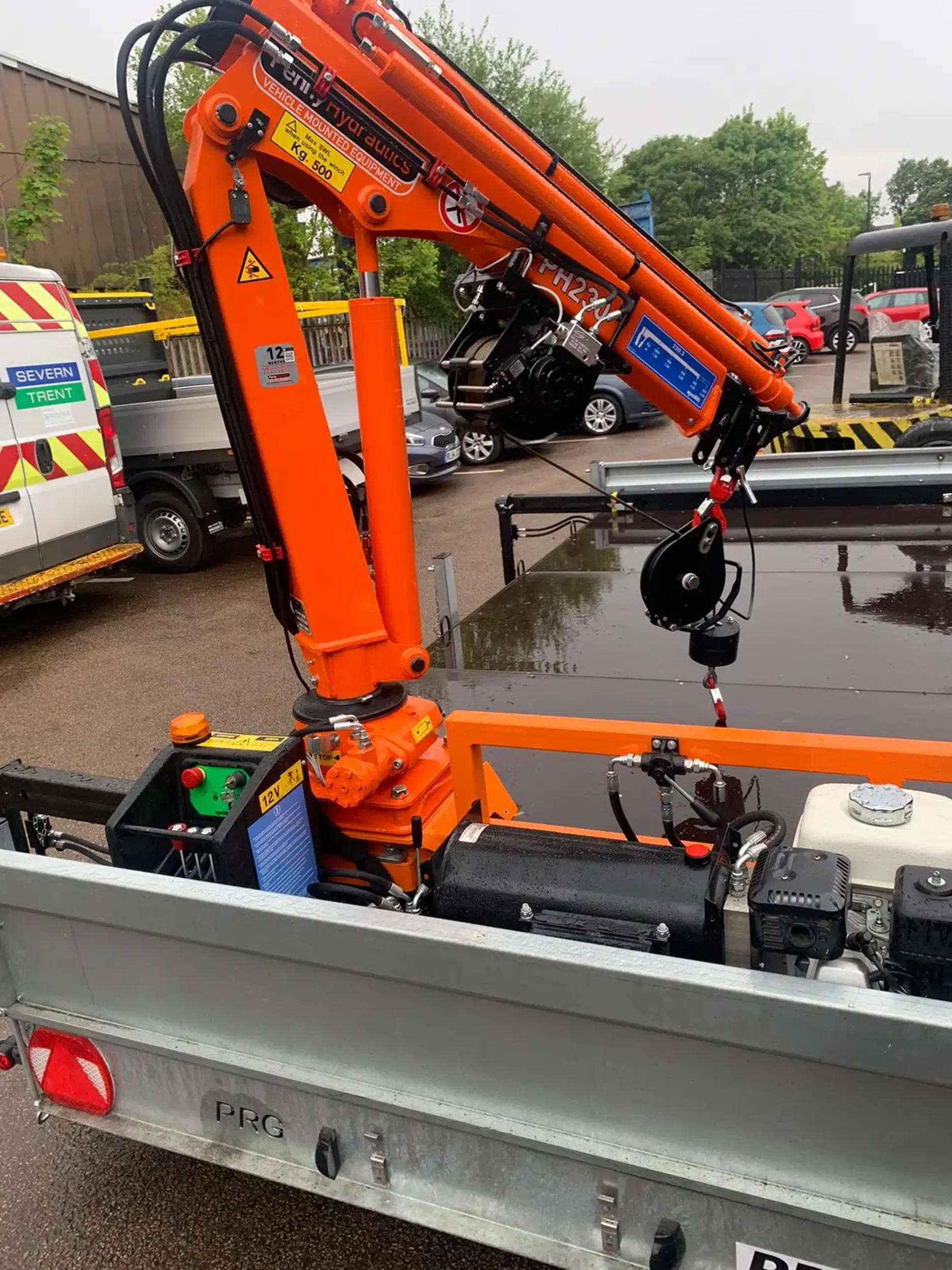

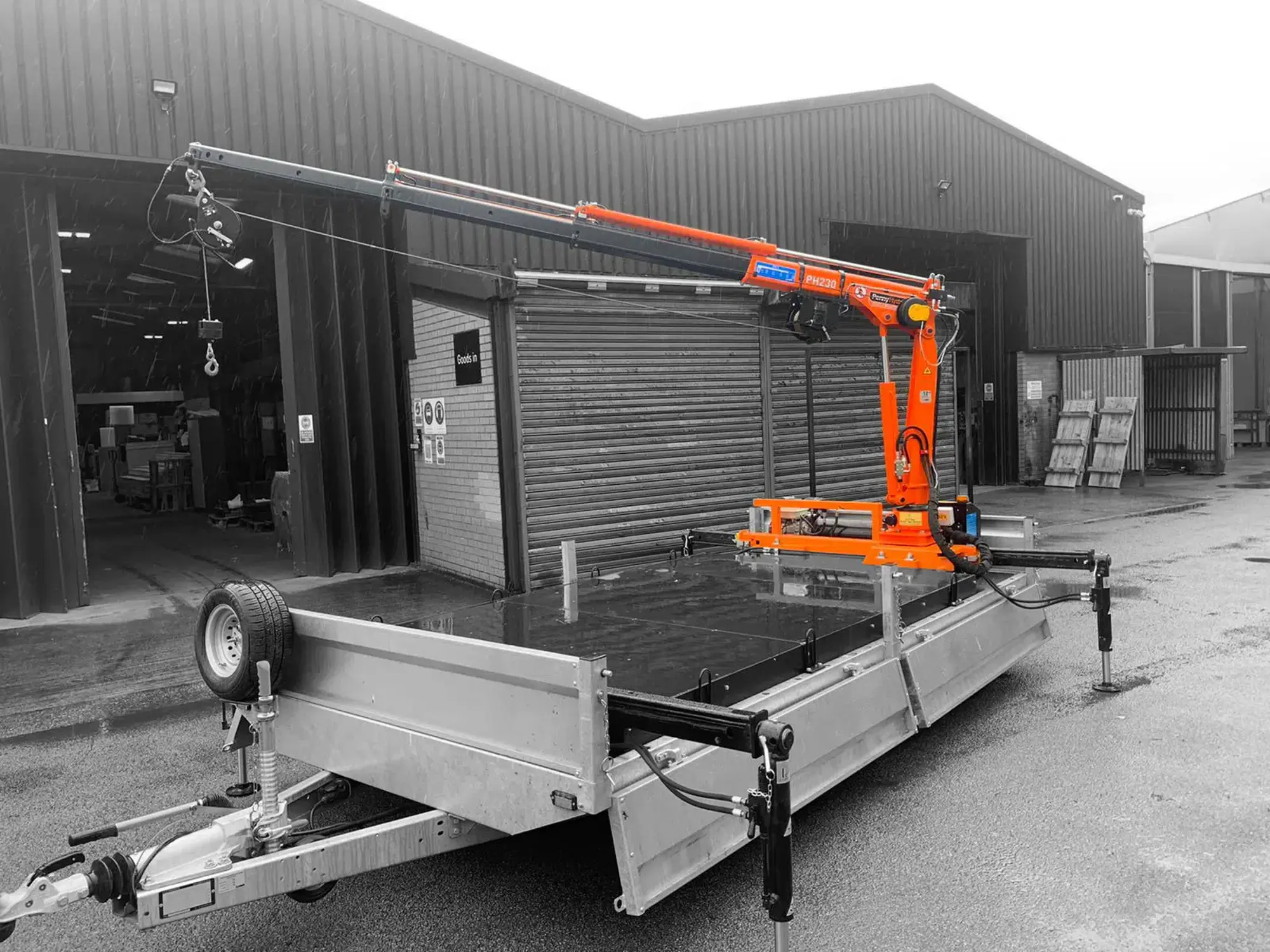

Indespension twin axle ‘FLT27105’ trailer with PH110 hydraulic crane fitted. Boasting a 990kg max working load and capable of lifting 250kg at 3.7m, the trailer crane combo has a remaining payload of 2.3 tonnes.
Fully tested and issued with certificate of examination.

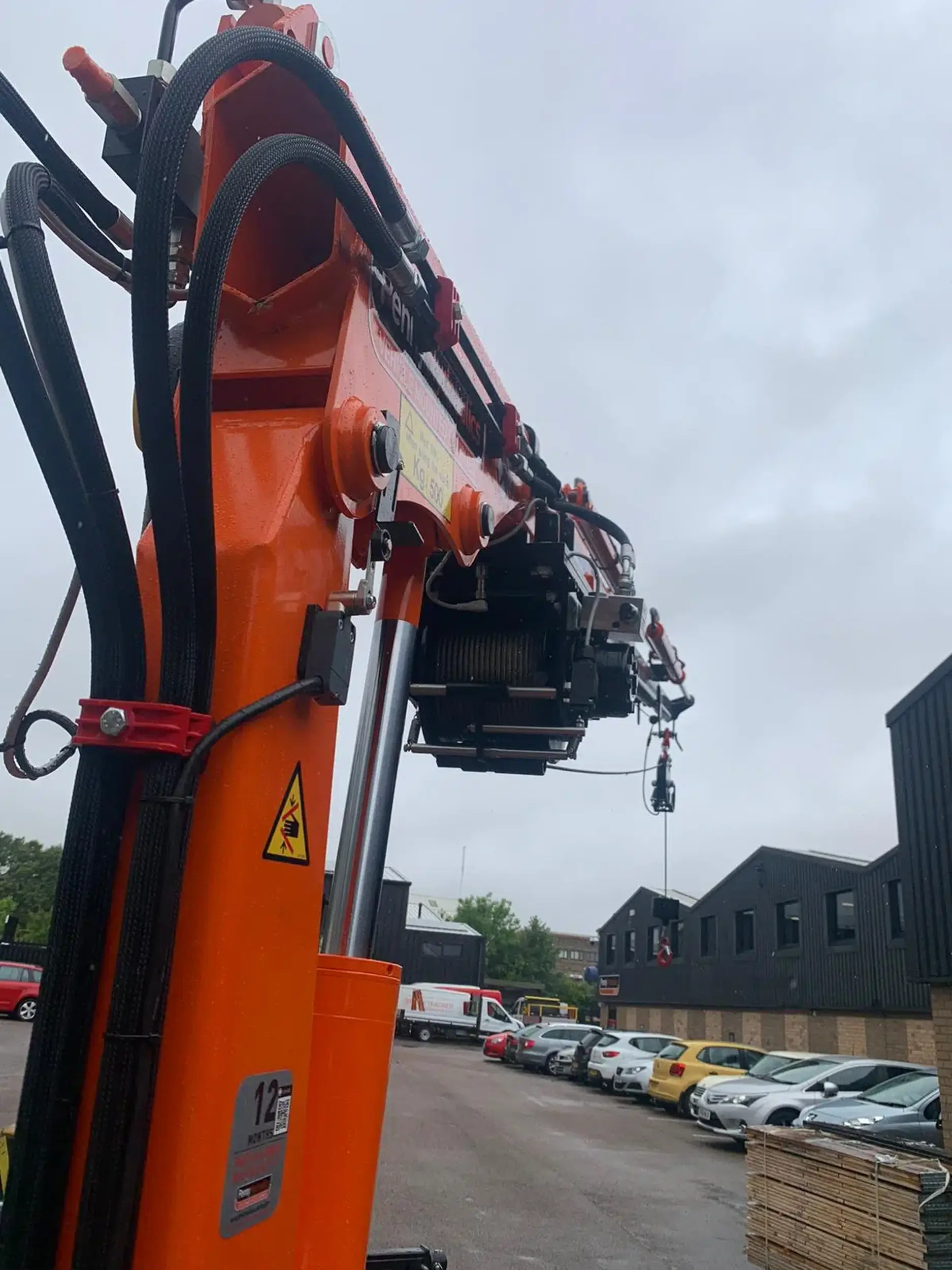

PH110S Hydraulic Crane
- 1.0 tm / 10kNm rated crane
- Standard outreach from 2.80 to 3.73m
- ECI – Electronic Capacity Indicator
- 330° slewing rotation
- 3 function valve bank (4th function for optional winch available on request)

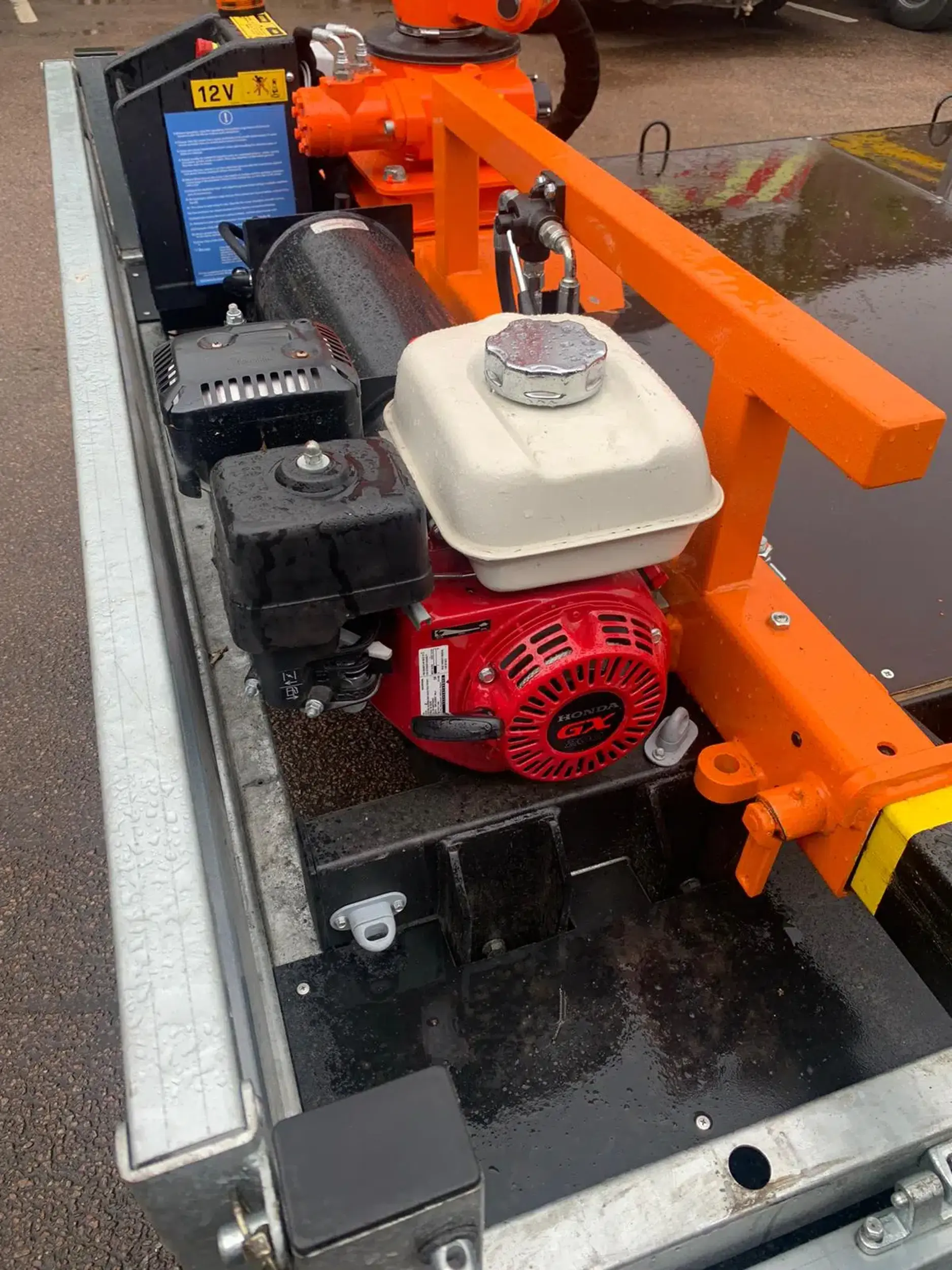

- Motor pump kit with 5 lt. oil tank for electro-hydraulic versions 12/24V (along with battery connection cables)
- 15 lt. oil tank for H (PTO – Power Take Off) version
- Fitting kit inc. tie bolts set, nuts
Indespension Twin Axle Trailer
- 10′ x 5’6ft twin axle trailer
- Fully Galvanised
Combined
- 80kg nose weight at 420mm (Fully compliant under current legislations)
- Legs not stowed hazard beacon and electronics, powered by the onboard battery
- Total weight 1370kg
