F500 Flatbed Mounted Crane
| Max Working Load (MWL) | 500 kg |
|---|---|
| Boom Reach | 1470 mm |
| Weight | 77 kg |
Key Features
- Low crane and integrated pillar weight of approximately 77kg maximises payload
- Lifts up to 500kg in all configurations of boom position
- Easy to use wander lead remote control
- Built in overload protection
- Compact design maximises floor space and payload
- Manual boom extension with three height settings
Description

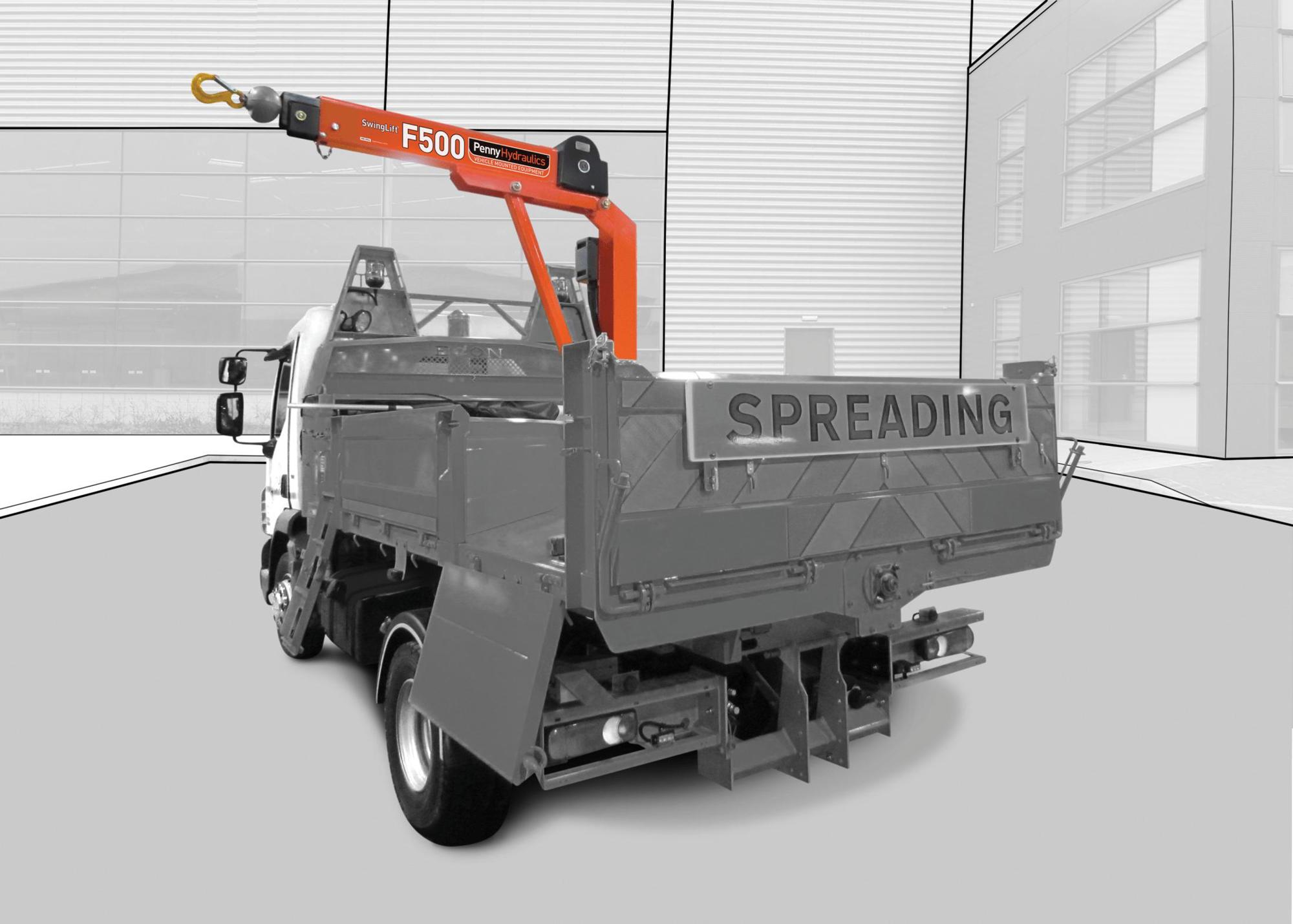

An extremely compact, 500kg capacity electric crane for pickups, dropsides and flatbeds ideally suited where space and payload are at a premium. The heavy duty winch ensures reliability and extended duty cycle.
*Crane weight of 77kg includes integral pillar.
Downloads
Product Specific
F500 Pick Up Specification
F500 Operating & Maintenance Manual

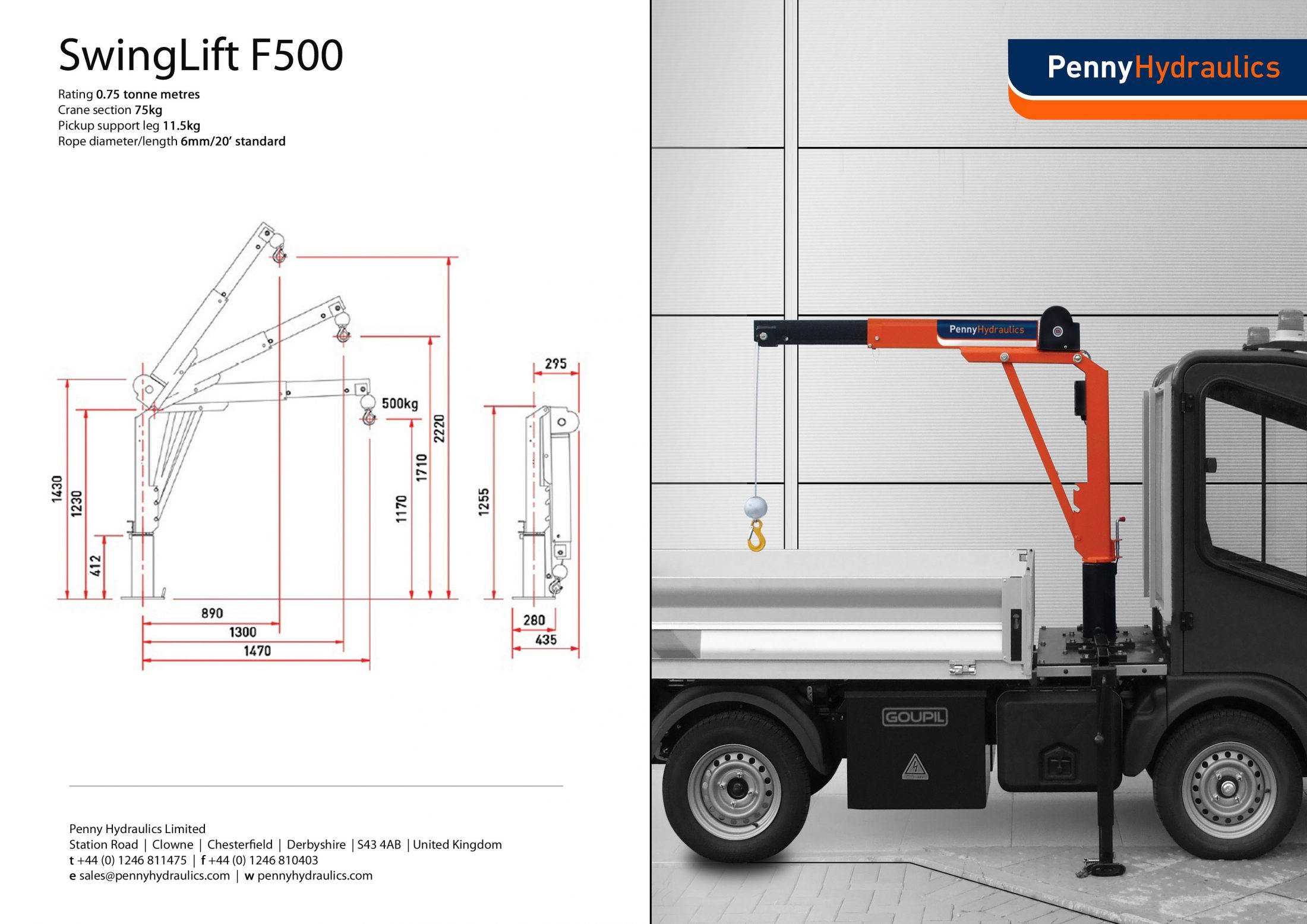

F500 Pickup Dimensional Drawing
Penny Engineering Lorry Loader Safety Guide
Electric SwingLift Cranes
Add-Ons/Options
- Down-rated versions available
- 12v or 24v operation from vehicle battery
- Manual or hydraulic stabiliser leg
- Radio remote control
- Stabiliser/outrigger pads
- Extra rope length up to 12m/40′
- Additional pillar height
- Battery protection
- Lifting accessory kit
- Easily installed at our own premises, on site or by a vehicle body builder
- Powder coated paint finish
