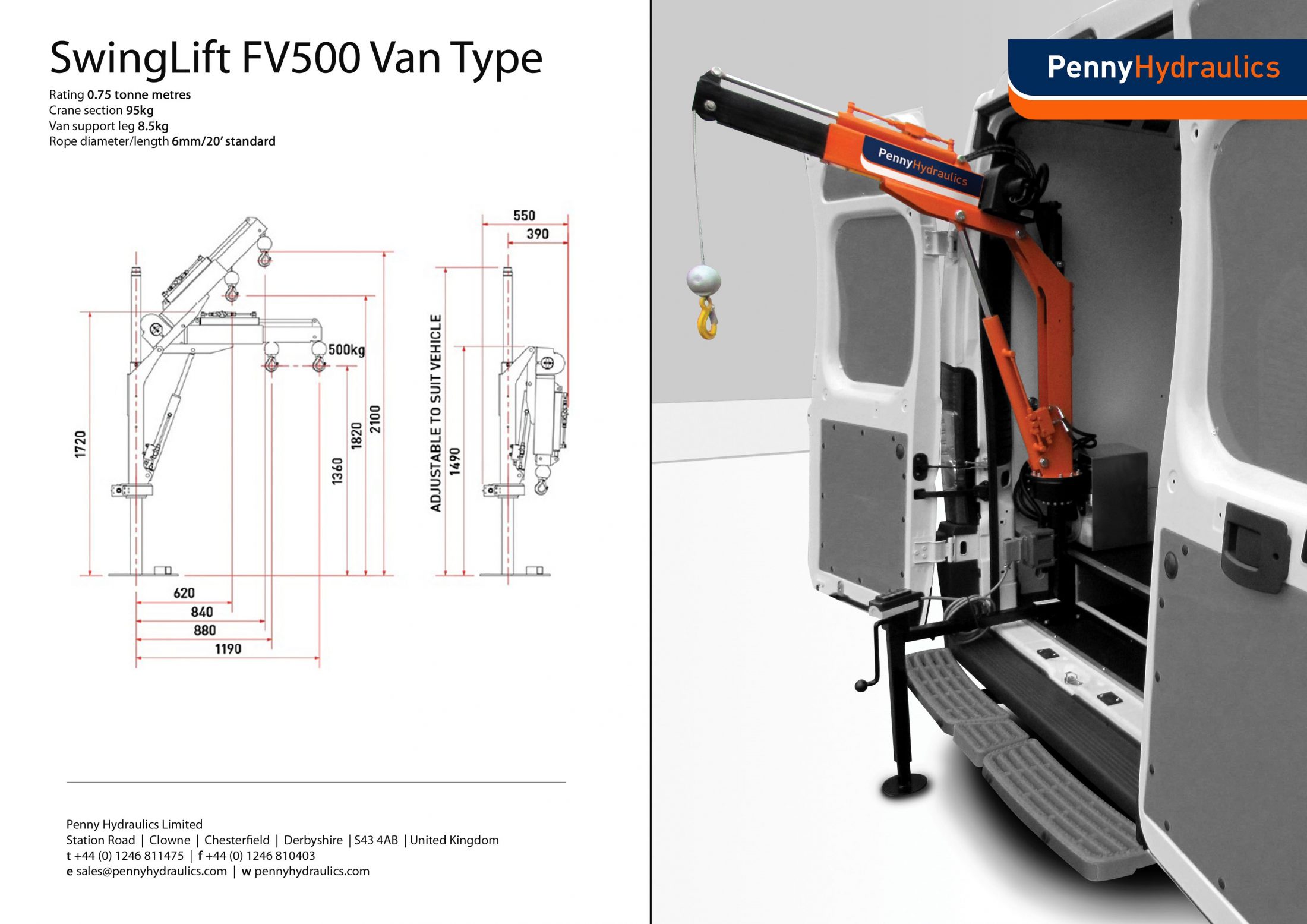

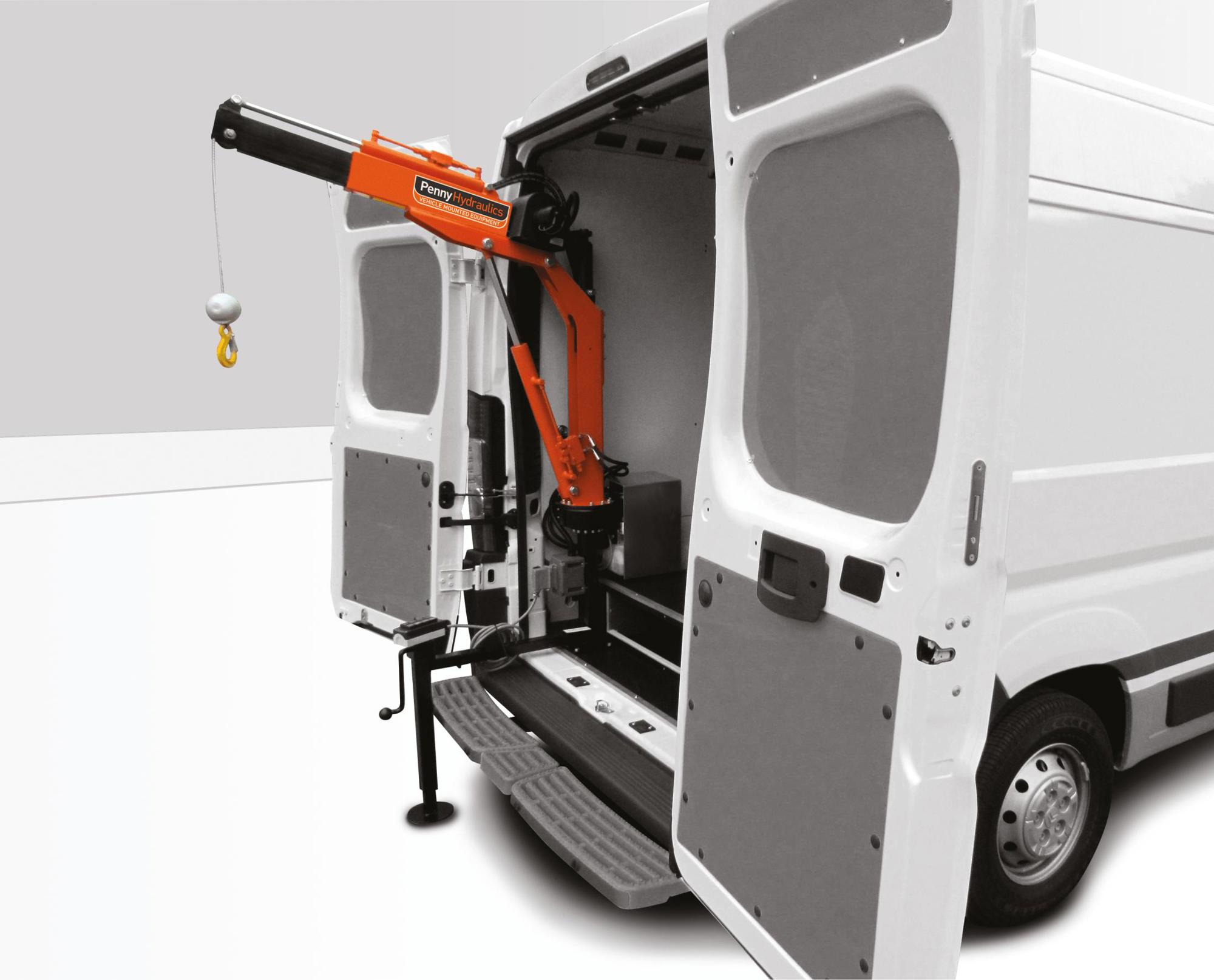

FV500 Van Mounted Crane
| Max Working Load (MWL) | 500 kg |
|---|---|
| Boom Reach | 1190 mm |
| Weight | 95 kg |
Key Features
- Suitable for most van applications
- Low crane weight, maximises payload
- Compact design, integral oil tank and motor pump unit maximises load space
- Easy to use wander lead remote control
- Fully hydraulic operation – boom raise, lower, extension and slew
- Electric winch for below ground applications
- Built-in overload protection as standard
- Lifts up to 500kg in all boom positions
Description
The FV500 incorporates hydraulic slew, boom raise, lower and extension for controlled, precise and safe handling. Designed for a wide range of load handling applications including service, engineering and deliveries. Compact design, robust construction and low self-weight ensure the FV500 can be installed on a wide range of commercial vehicles to provide reliable and flexible load handling capabilities. Its 500kg capacity winch allows vertical below-ground handling, making it the ideal solution for local authorities, highways and utilities.
Please note that nearside and offside fittings require a different crane, pillar and fitting kit. It is not always possible to raise the crane boom to its highest position inside a van.
Downloads
Product Specific
Electric SwingLift Cranes
Add-Ons/Options
- Down-rated versions available
- Mounting frame with integral support legs
- Manual or hydraulic stabiliser legs
- Stabiliser/outrigger pads
- 12V or 24V operation from standard vehicle battery
- Extra rope length up to 12m/40ft
- Additional pillar height
- Crane slew stops
- Battery protection
- Lifting accessory kit
- Powder coated paint finish
