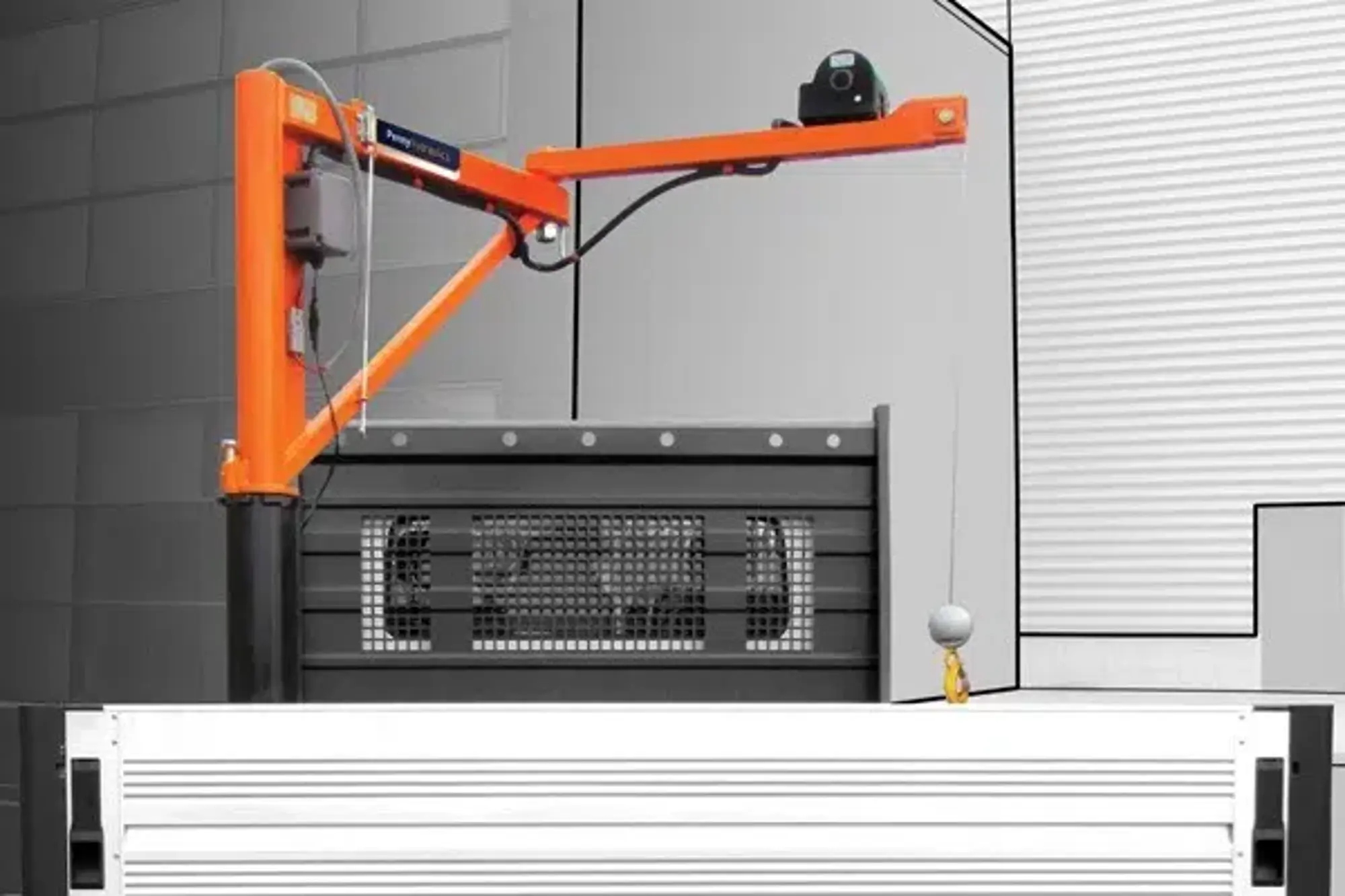

KJ250 Flatbed Mounted Crane (2M Boom, Rotating Pillar Type)
SKU: KJ250/2RPT
| Max Working Load (MWL) | 250 kg |
|---|---|
| Boom Reach | 1910 mm |
| Weight | 100 kg |
Key Features
- 2m boom length with 2 pivot points -a total diameter of 4m
- Built in overload device
- Compact design
- Can be re-fitted to new or replacement vehicles
- Can be deployed and operated from ground level
- Easy to operate wander lead remote control
- Versatile 350° slew allows handling operations to take place at the rear or side of the vehicle
- Ideal for plant and machinery
Description
The KJ250/2RPT is a two metre knuckle-joint crane offering even greater flexibility, reliability and durability.
It offers an efficient and cost-effective means of handling loads for pickups, dropsides and larger trucks and can be operated from the ground, eliminating the risks associated with climbing up onto vehicles. 350° slew means the RPT can be fitted at the rear of the vehicle body and perform lifts over the rear and side of the vehicle.
Downloads
Product Specific
KJ250/2 RPT Specification

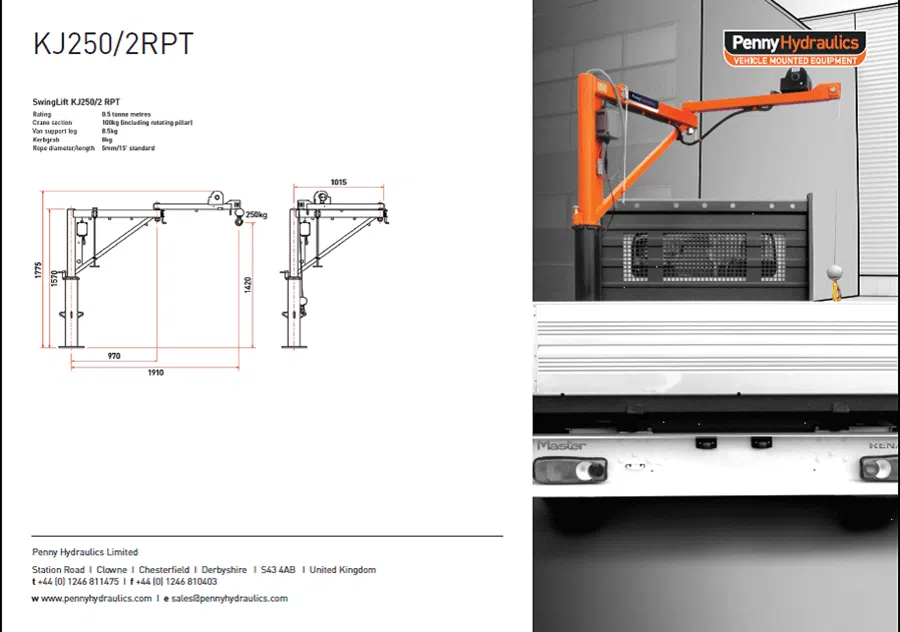

Kj250/2 RPT Dimensional Drawing
KJ Range Operating & Maintenance Manual
Penny Engineering Lorry Loader Safety Guide
Electric SwingLift Cranes
Add-Ons/Options
- A range of kerb and bollard handlers available
- 150kg MWL version also available
- 12v or 24v operation from vehicle battery
- Radio remote control
- Additional pillar height
- Extra rope length – 9m/30′
- Manual stabiliser leg
- Battery protection
- Lifting accessory kit
- Easily installed at our own premises, on-site or by a vehicle body builder
- Stabiliser/outrigger pads
- Powder coated paint finish
