KJ250 Van Mounted Crane (1.5M Boom)
SKU: KJ250/1.5
| Max Working Load (MWL) | 250 kg |
|---|---|
| Boom Reach | 1550 mm |
| Weight | 42 kg |
Key Features
- Ideal for general items of plant including whacker plates & compressors
- 1.5 metre boom plus 2 pivot points means operator can carry out lifts within a 3 metre diameter
- Overload device – will not lift more than MWL
- Low crane weight of approximately 42kg
- Van Pillar – Dependant on vehicle (average 35kg)
- Compact design maximising vehicle floor space
- Fully demountable – can be deployed on other vehicles or removed altogether, therefore maintaining maximum fleet flexibility
- Can be re-fitted to new or replacement vehicles
- Easy to operate wander lead remote control
Description
The KJ250/1.5 is a one-and-a-half metre knuckle-joint crane offering a complete handling solution, combining simplicity, reliability and proven durability. It provides a safe, efficient and cost-effective means of handling loads for all types of vehicle.
Downloads
Product Specific
KJ250/1.5 Specification

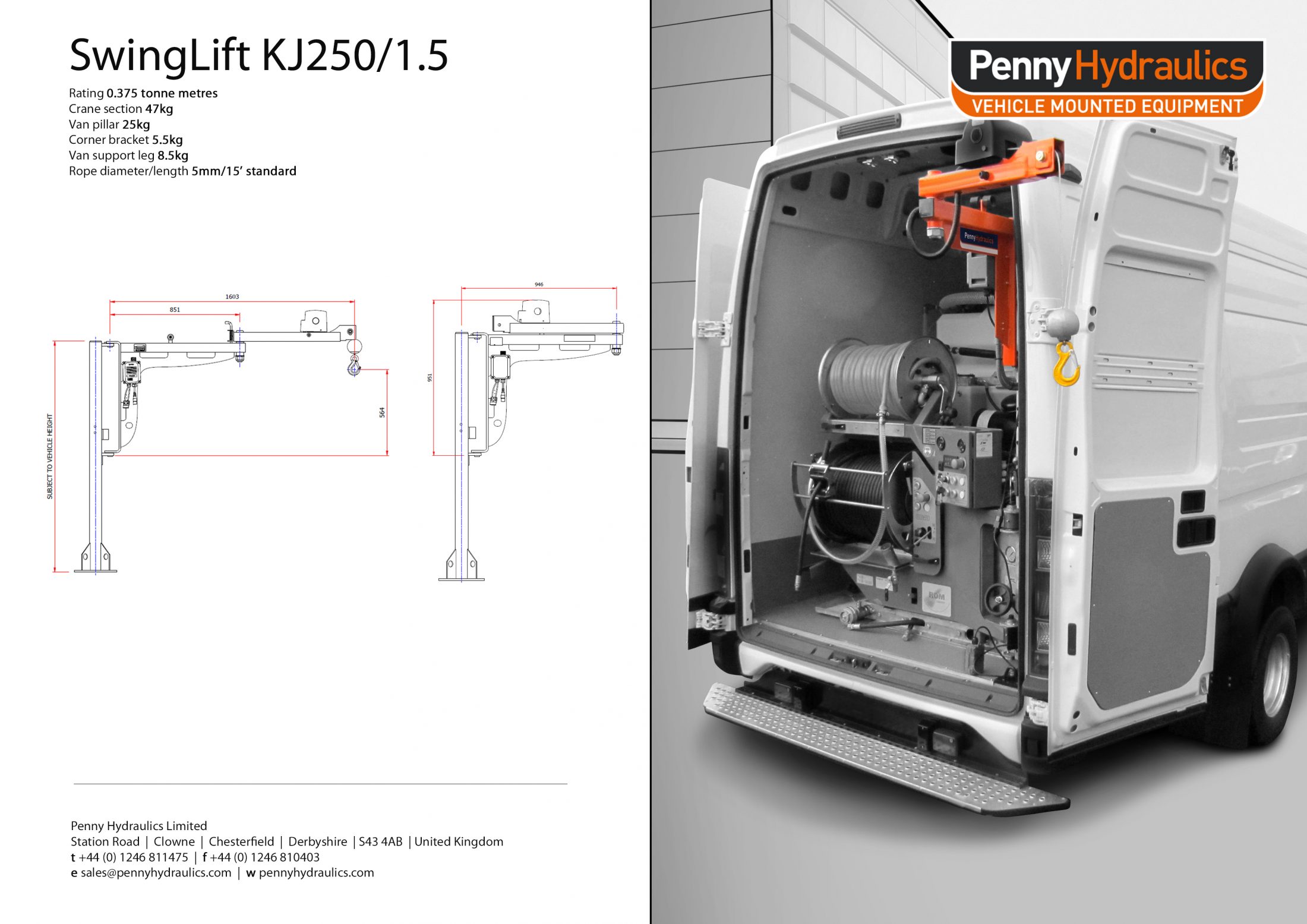

KJ250/1.5 Dimensional Drawing
KJ Range Operating & Maintenance Manual
Penny Engineering Lorry Loader Safety Guide
Electric SwingLift Cranes
Add-Ons/Options
- 12v or 24v operation from vehicle battery
- Radio remote control
- Corner bracket for mounting direct to headboard
- Cranked hinge available allowing ever greater flexibility
- Additional pillar height
- Extra rope length – 9m/30′
- Battery protection
- Lifting accessory kit
- Down-rated versions available
- Manual stabiliser legs
- Stabiliser/outrigger pads
- Powder coated paint finish
