KJ250 Van Mounted Crane (1M Boom)
SKU: KJ250/1
| Max Working Load (MWL) | 250 kg |
|---|---|
| Boom Reach | 1070 mm |
| Weight | 28 kg |
Key Features
- Ideal for general items of plant such as whacker plates and generators
- 1 metre boom plus 2 pivot points means operator can carry out lifts within a 2 metre diameter
- Overload device – will not lift more than MWL
- Low crane weight of approximately 28kg
- Van Pillar – Dependant on vehicle (average 35kg)
- Compact design maximising vehicle floor space
- Fully demountable – can be deployed on other vehicles or removed altogether therefore maintaining maximum fleet flexibility
- Can be re-fitted to new or replacement vehicles
- Easy to operate with wander lead control
Description

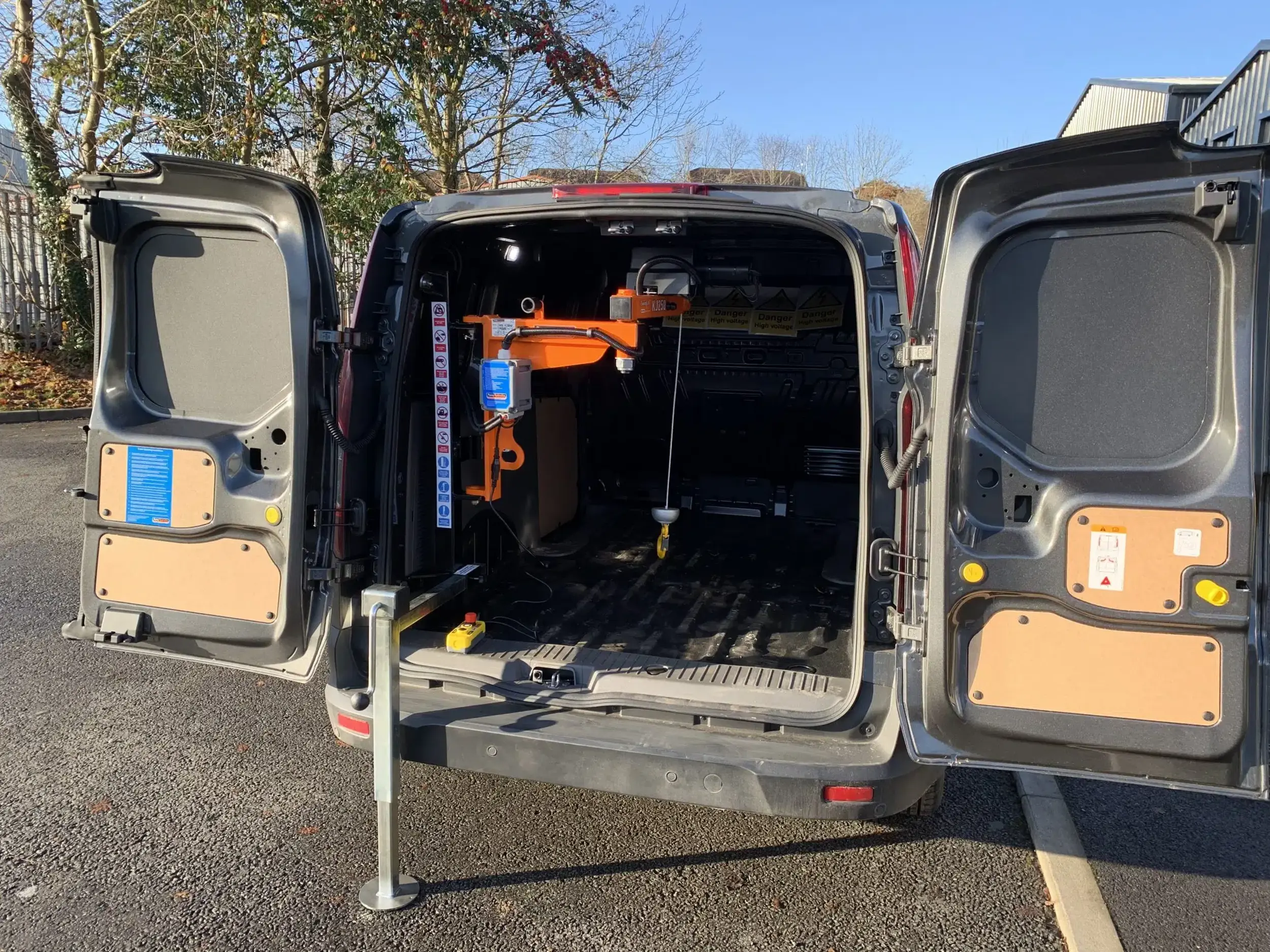

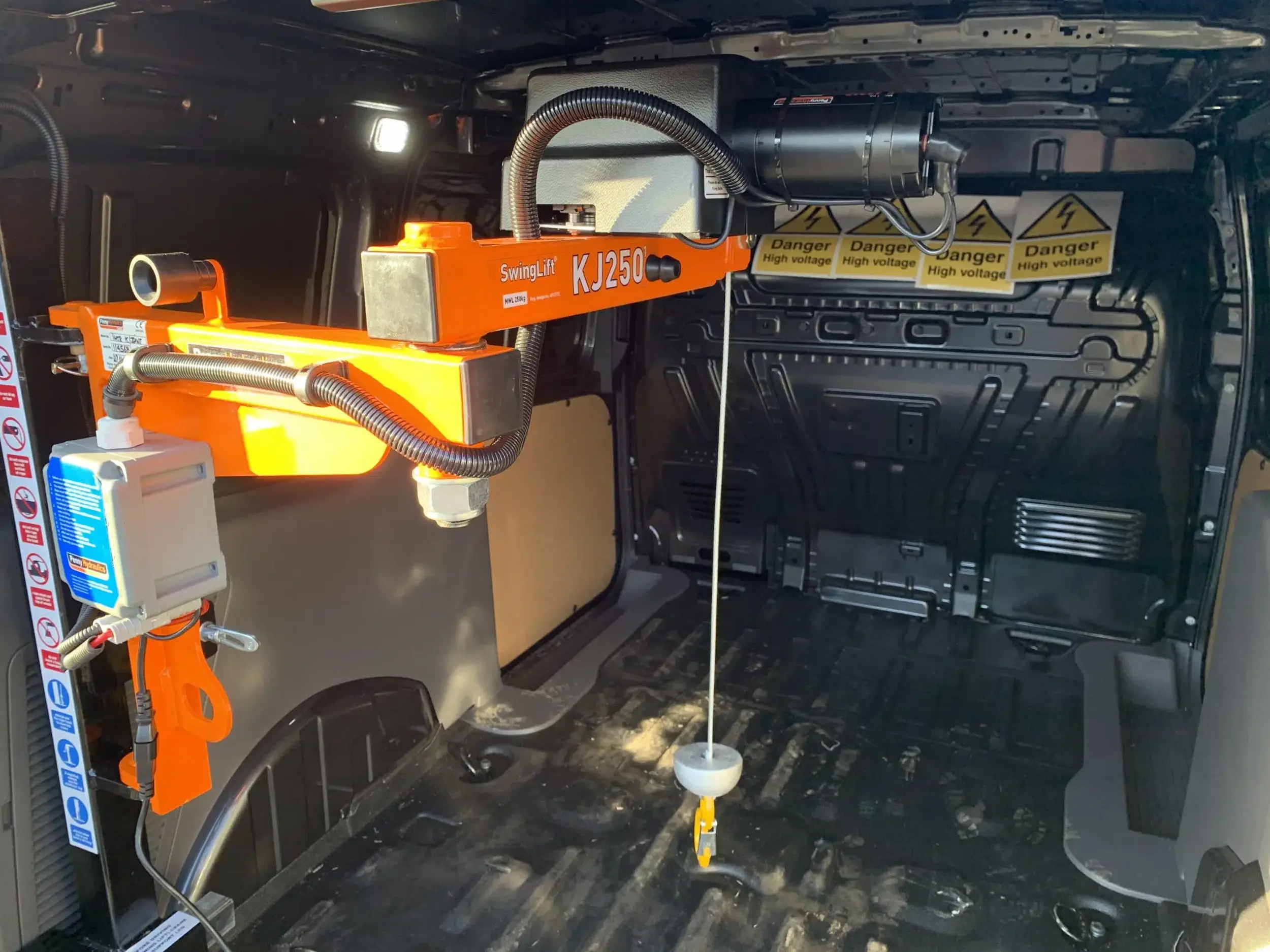

The KJ250/1 is a 250kg capacity knuckle-joint crane for vans. The unique Penny Engineering design allows users to maximise reach but still load down the centre line of the load area of the van. It is ideal for handling general items of plant anywhere within a two-metre diameter.
Downloads
Product Specific
KJ250/1 Operating & Maintenance Manual

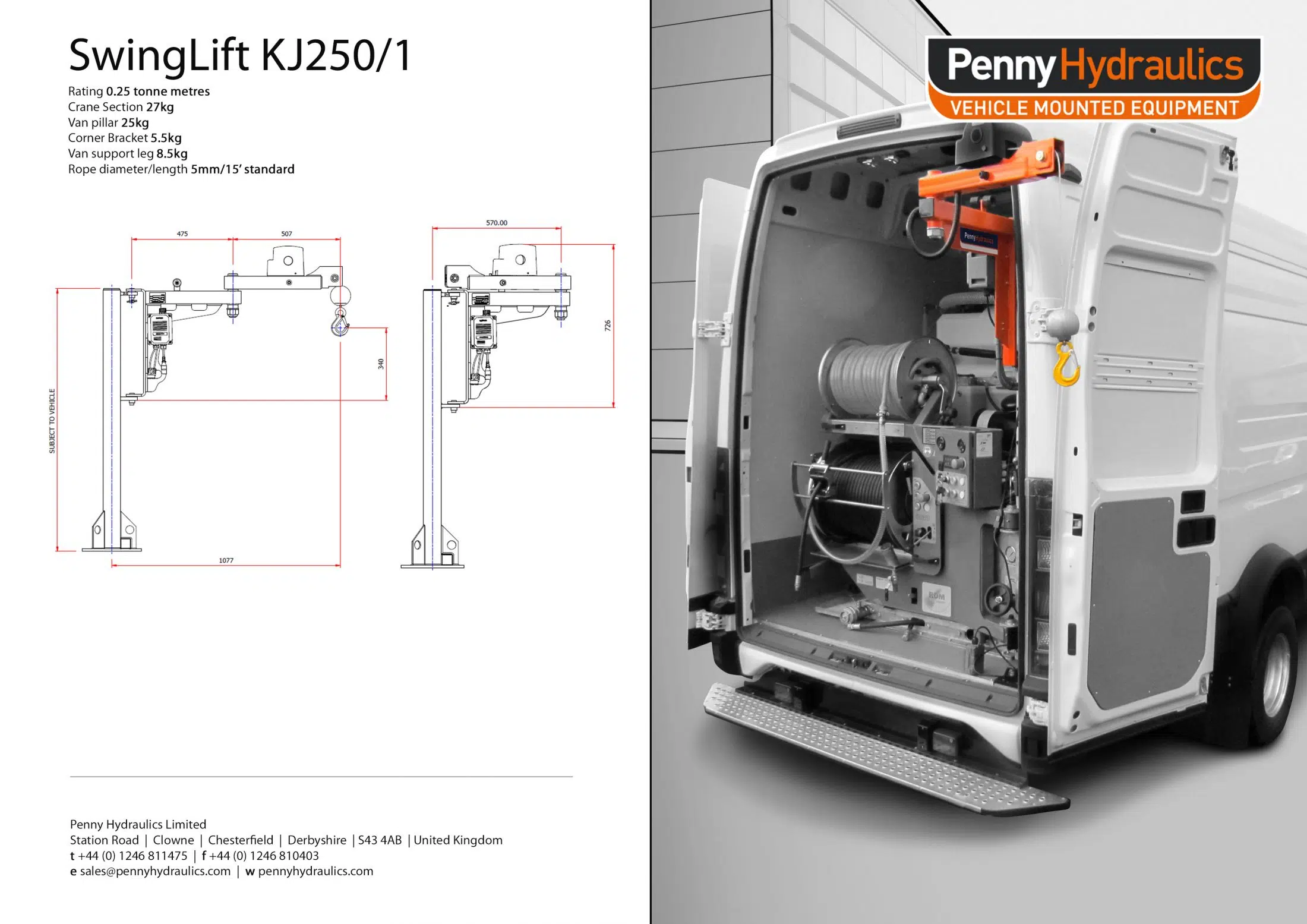

KJ250/1 Dimensional Drawing
KJ250/1 Specification Sheet
KJ Range Operating & Maintenance Manual
Penny Engineering Lorry Loader Safety Guide
Electric SwingLift Cranes
Add-Ons/Options
- 12v or 24v operation from vehicle battery
- Radio remote control
- Cranked hinge available allowing even greater flexibility
- Additional pillar height
- Extra rope length – 9m/30′ up to 250kg
- Battery protection
- Lifting accessory kit
- Corner bracket for mounting direct to headboard
- Down-rated versions available
- Stabiliser/outrigger pads
- Manual stabiliser legs
- Powder coated paint finish
