ML250 Flatbed Mounted Crane
| Max Working Load (MWL) | 250 kg |
|---|---|
| Boom Reach | 980 mm |
| Weight | 23 kg |
Key Features
- Lifts 250kg in all configurations of boom position
- Low crane weight of approximately 23kg
- Supplied with Corner Bracket – 8kg
- Easy to operate wander lead remote control
- Easily demountable
- Built in overload protection
- Compact design folds away when not in use
Description

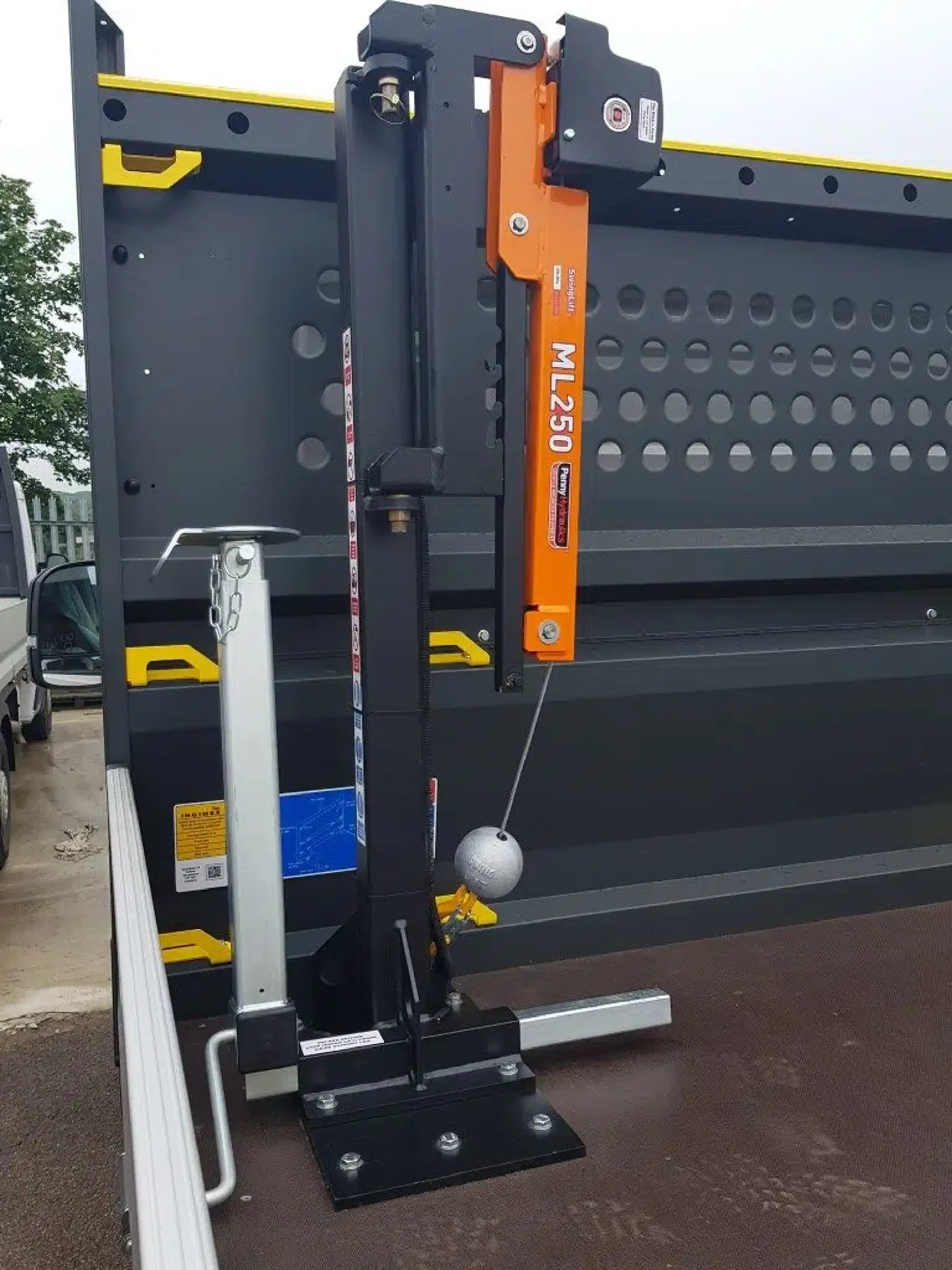

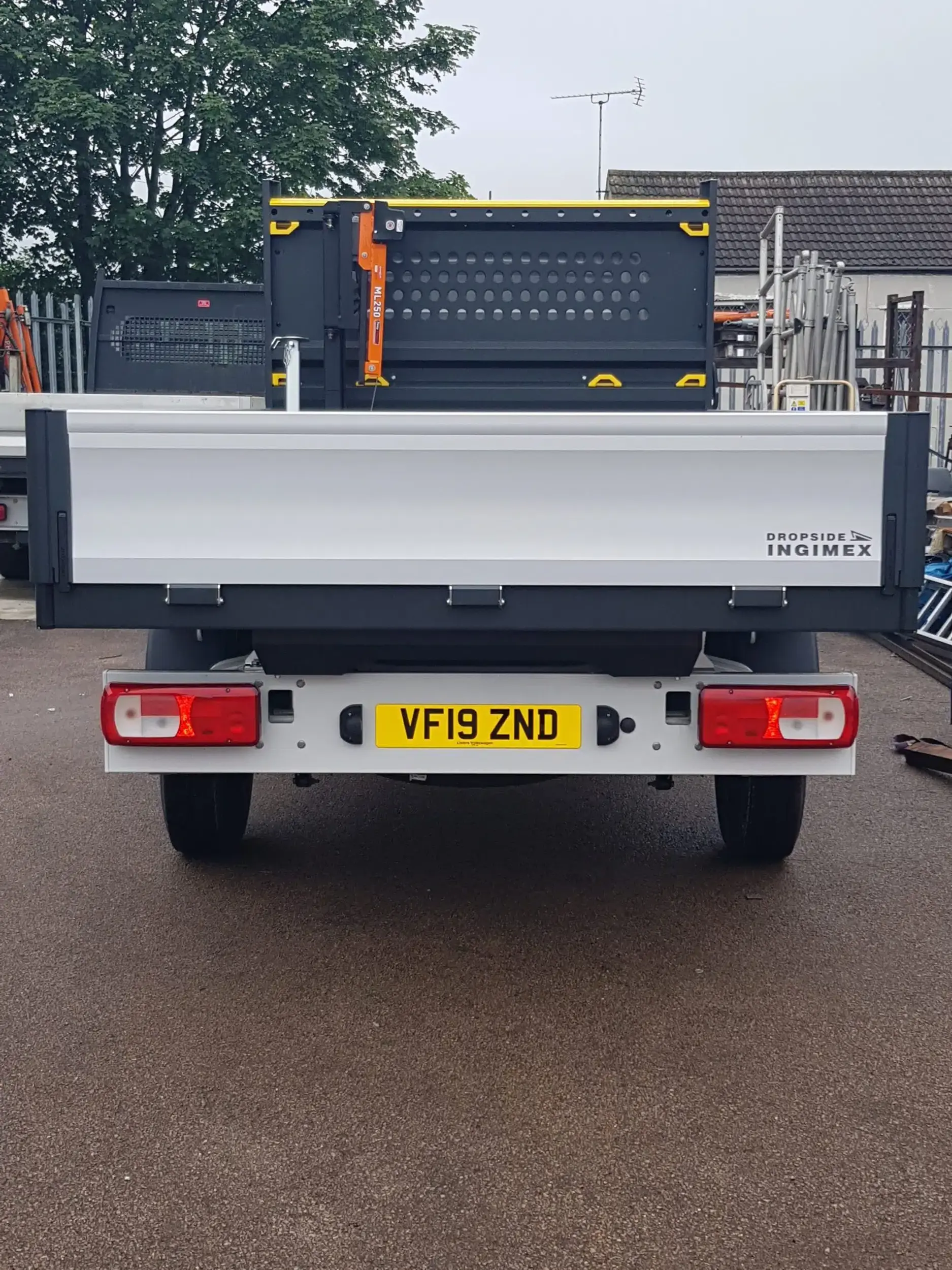

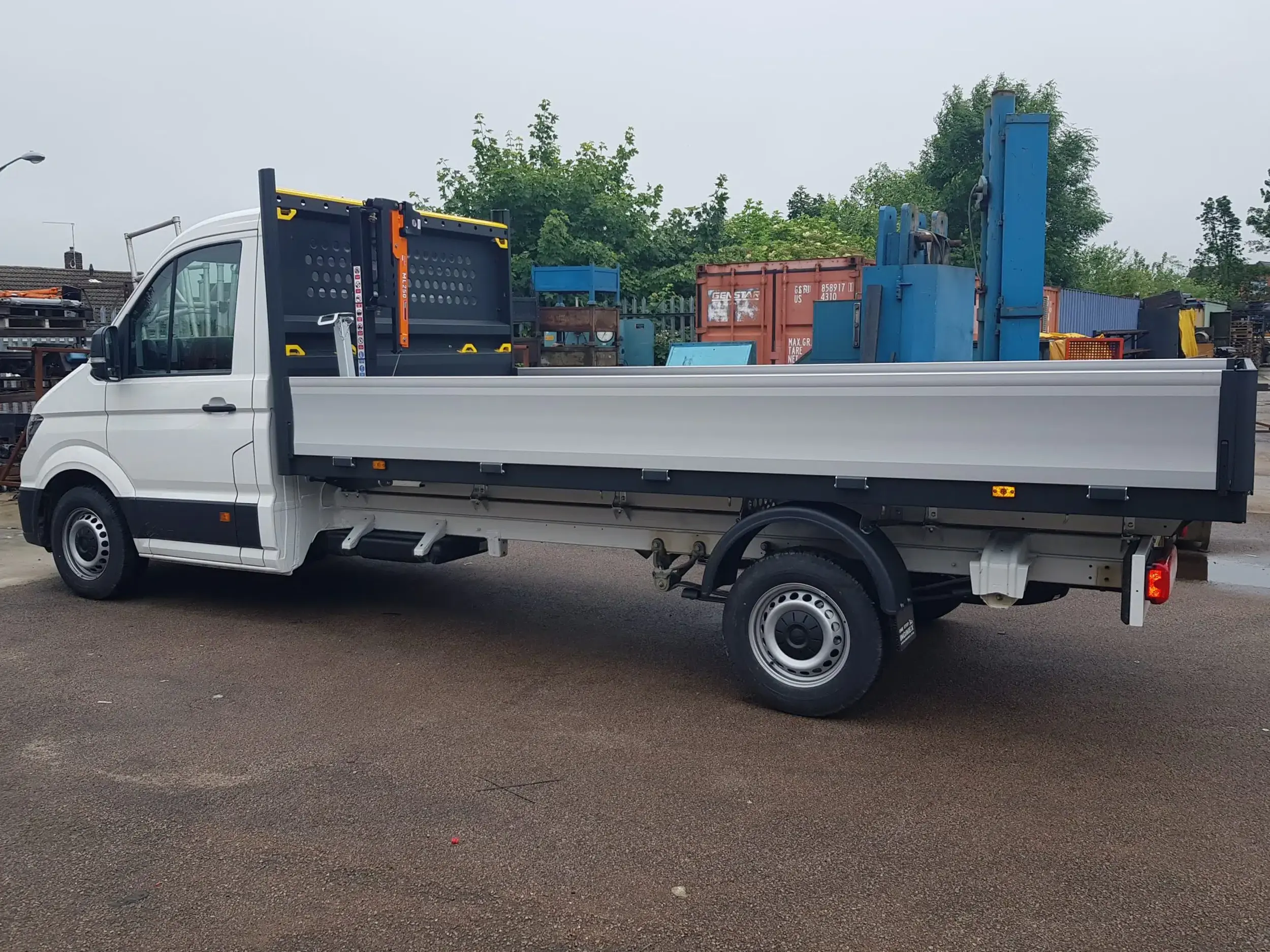

The ML250 is a lightweight, demountable electric crane for pickups and dropsides. Its compact size is ideal where space is limited and with a 250kg capacity it can lift heavy items quickly and easily off and onto vehicles.
Downloads
Product Specific
ML250 Pickup Type Specification

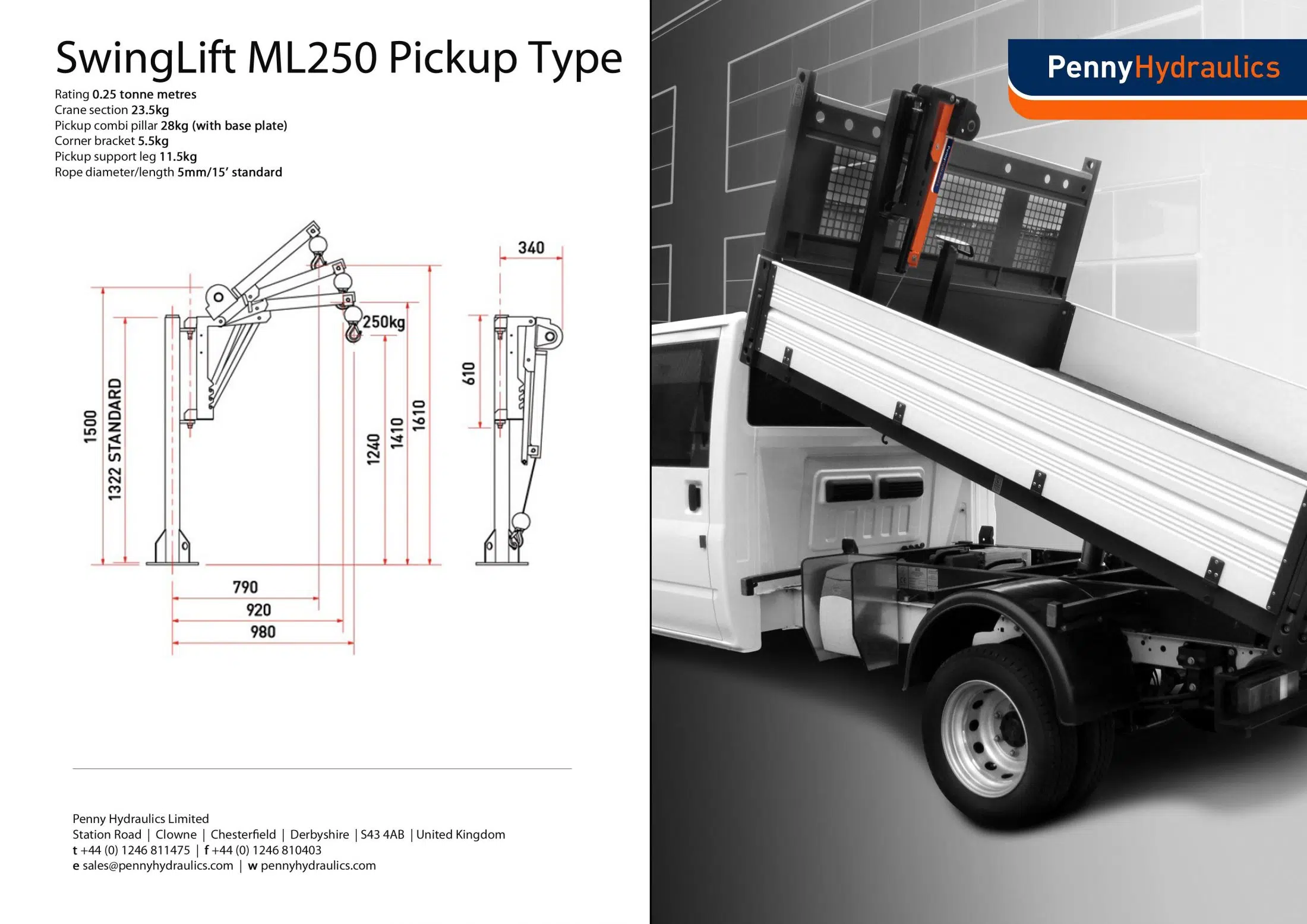

ML250 Pickup Dimensional Drawing
ML250 Operating & Maintenance Manual
Installation Guidelines Swinglift Cranes – ML Range
Penny Engineering Lorry Loader Safety Guide
Electric SwingLift Cranes
Add-Ons/Options
- Corner bracket for mounting direct to headboard
- 12v or 24v operation from vehicle battery
- Above or below floor socket mounting
- Radio remote control
- Extra rope length – 9m/30′ up to 250kg
- Additional pillar height
- Easily installed at our own premises, on site or by a vehicle body builder
- Manual stabiliser leg
- Stabiliser/outrigger pads
- Battery protection
- Lifting accessory kit
- Down-rated versions available
- Powder coated paint finish
