ML250 Van Mounted Crane
| Max Working Load (MWL) | 250 kg |
|---|---|
| Boom Reach | 960 mm |
| Weight | 23 kg |
Key Features
- Lifts up to 250kg in all configurations of boom position
- Low crane weight of approximately 23kg
- Van Pillar- Dependant on vehicle (average 35kg)
- Wander lead remote control
- Easily demountable
- Built in overload protection
- Compact design folds away when not in use
Description
The ML250 van type has a fully demountable design and a wide range of options make it a versatile and cost-effective load handling solution. The shorter boom is better suited to vans and allows lifts to be performed nearer to the centre of the vehicle.
Please note that nearside and offside fittings require a different crane, pillar and fitting kit. It is not always possible to raise the crane boom to its highest position inside a van.
Downloads
Product Specific

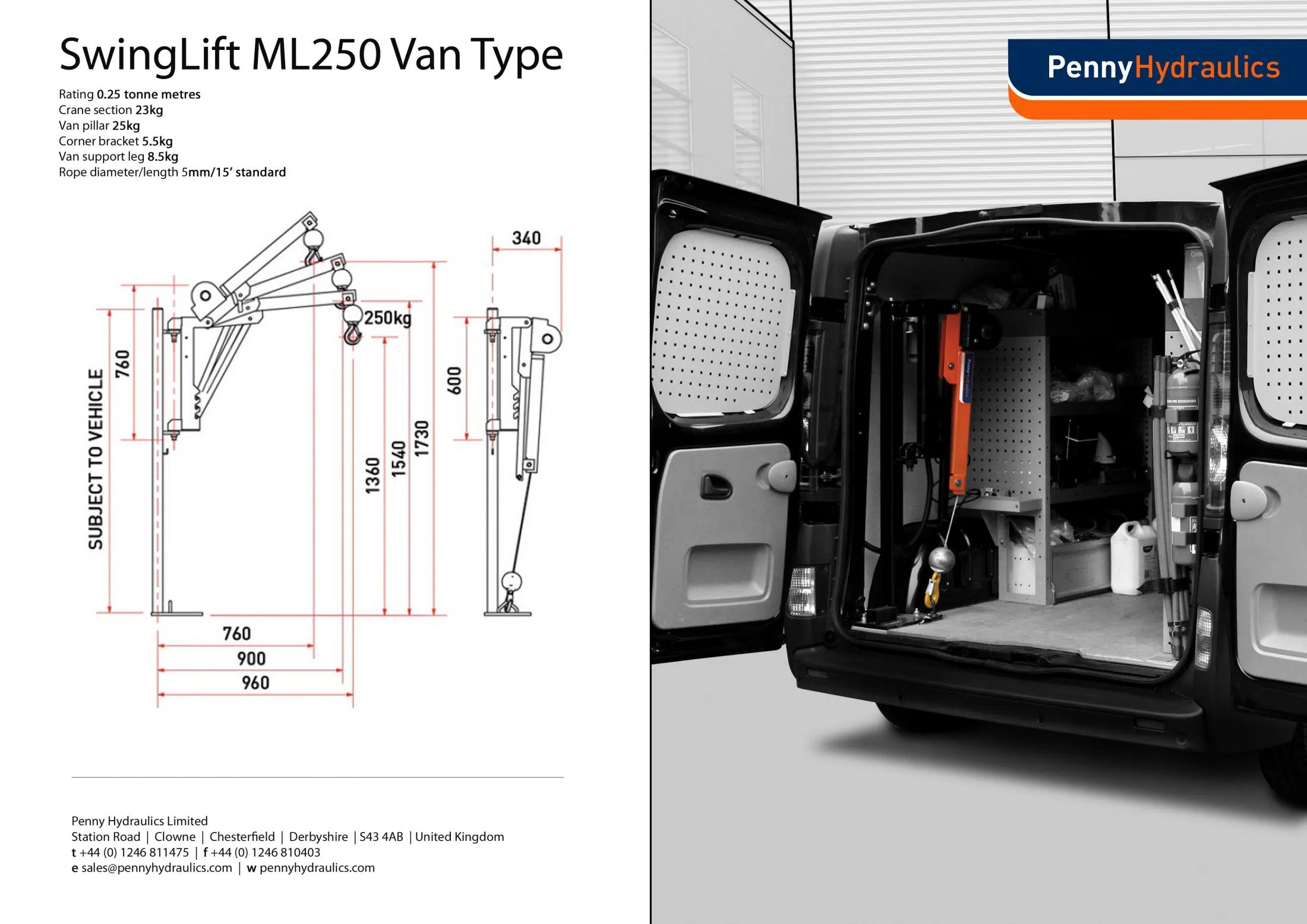

ML250 Van Dimensional Drawing
ML250 Van Type Specification
Installation Guidelines Swinglift Cranes – ML Range
Penny Engineering Lorry Loader Safety Guide
Swinglift Operating and Maintenance Manual
Electric SwingLift Cranes
Add-Ons/Options
- Down-rated versions available
- 12v or 24v operation from vehicle battery
- Radio remote control
- Extra rope length – 9m/30′ up to 250kg
- Easily installed at our own premises, on site or by a vehicle body builder
- Manual stabiliser leg
- Stabiliser/outrigger pads
- Battery protection
- Lifting accessory kit
- Powder coated paint finish
