ML500 Flatbed Mounted Crane (Long Boom)
| Max Working Load (MWL) | 500 kg |
|---|---|
| Boom Reach | 1640 mm |
| Weight | 48 kg |
Key Features
- Lifts up to 500kg in all configurations of boom position
- Easy to use wander lead remote control
- Easily demountable
- Low crane weight from 48kg
- Supplied with Corner Bracket 8kg
- Supplied with Combi Pillar 28kg
- Overload protection
- Compact design folds away when not in use
- Manual boom extension with three height settings
Description

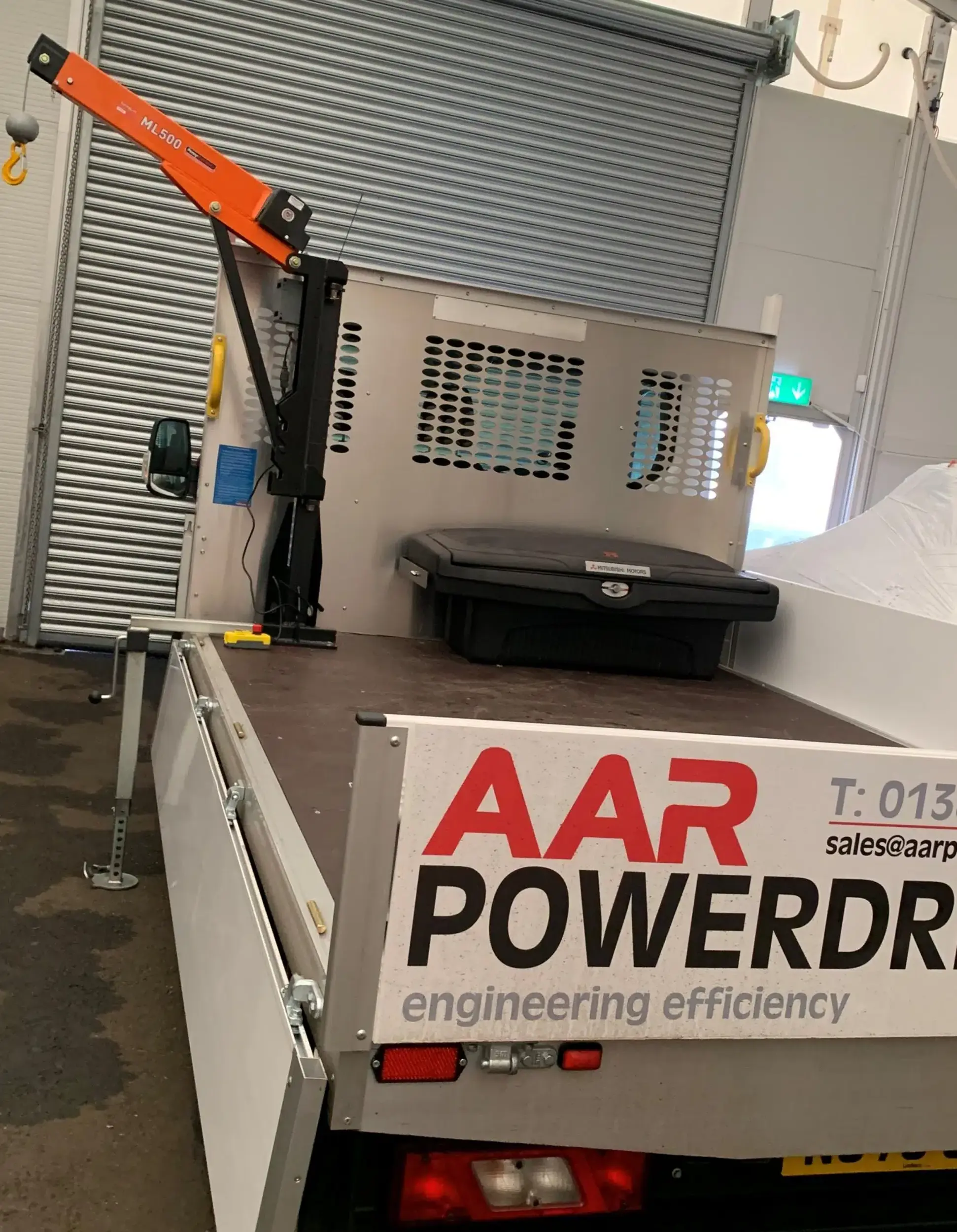

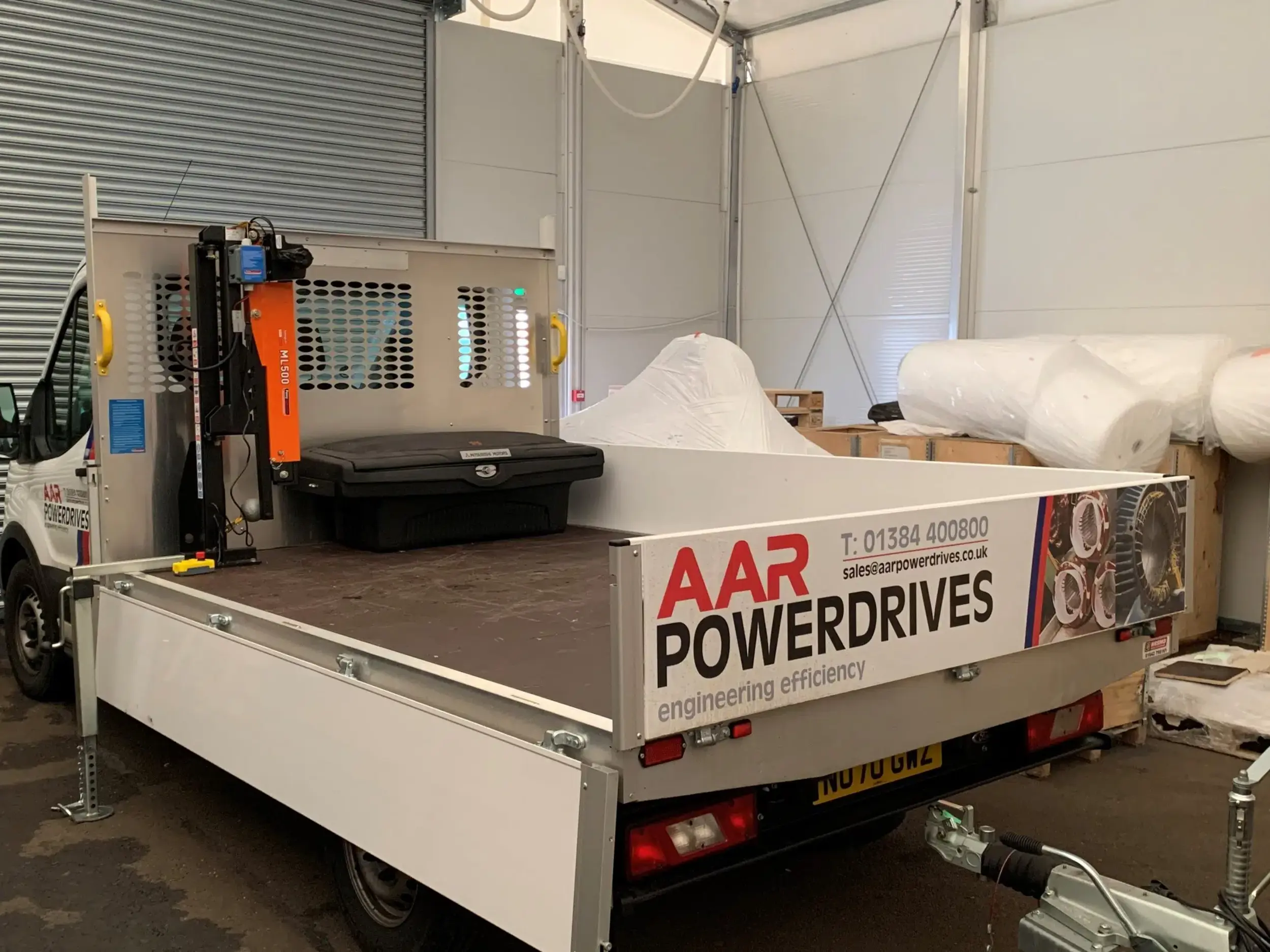

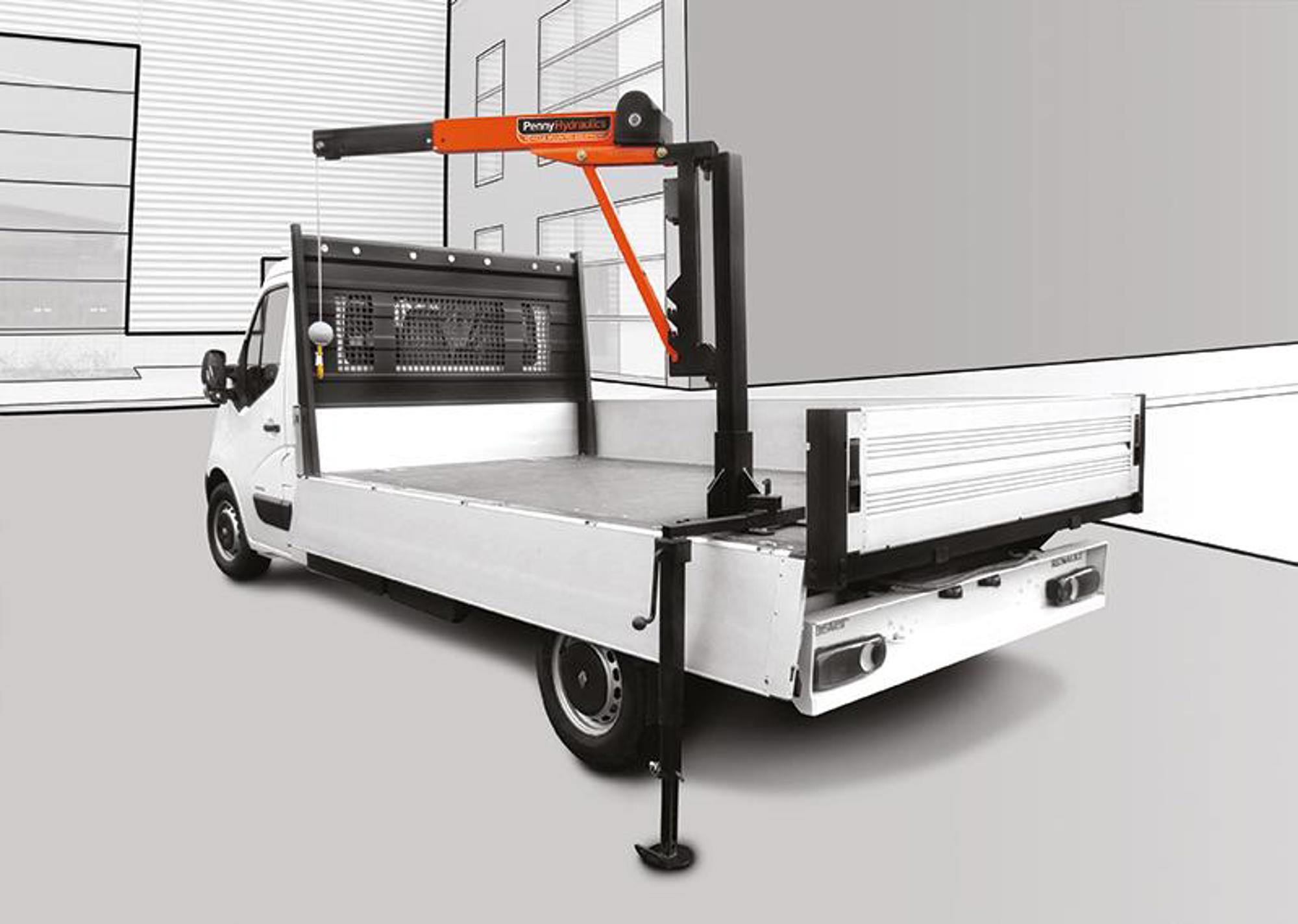

A long boom version of our popular ML500. Its extra boom reach and heavy-duty winch make the ML500LB the ideal crane for pickups, flatbeds and dropsides – perfect for loading items of plant such as motors, pumps and compressors.
Downloads
Product Specific
ML500 LB Pickup Type Specification
ML500 Operating & Maintenance Manual
Installation Guidelines Swinglift Cranes – ML Range
Penny Engineering Lorry Loader Safety Guide
Electric SwingLift Cranes
Add-Ons/Options
- Down-rated versions available
- 12v or 24v operation from vehicle battery
- Extra rope length up to 12m/40′
- Manual stabiliser leg
- Stabiliser/outrigger pads
- Radio remote control
- Additional pillar height
- Battery protection
- Lifting accessory kit
- Socket mounting
- Easily installed at our own premises or by a suitably qualified vehicle body builder
- Powder coated finish
