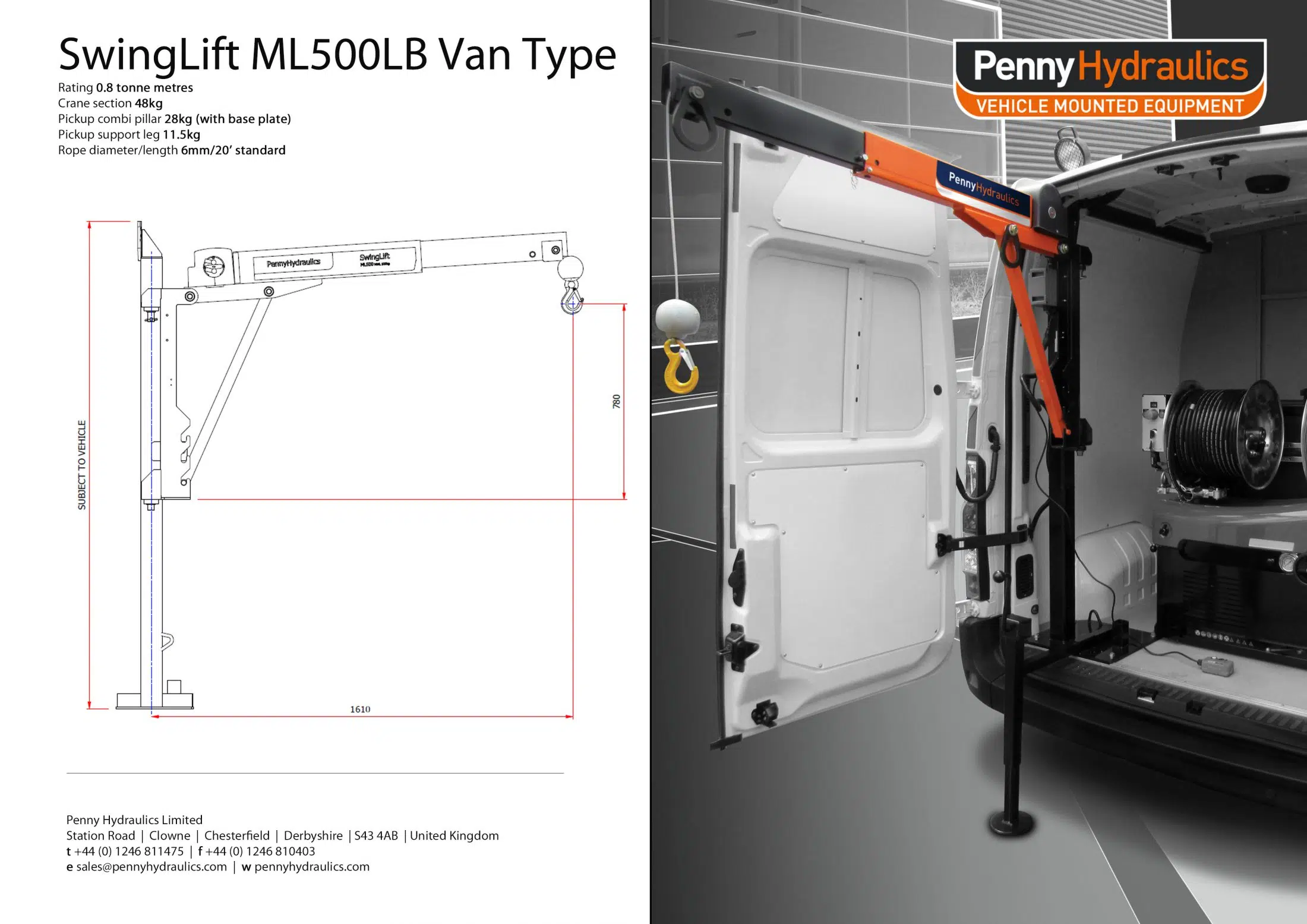

ML500 Van Mounted Crane (Long Boom)
| Max Working Load (MWL) | 500 kg |
|---|---|
| Boom Reach | 1610 mm |
| Weight | 48 kg |
Key Features
- Lifts up to 500kg in all configurations of boom position
- Low crane weight of approximately 48 kg
- Van Pillar – Dependant on vehicle (average 35 kg)
- Easy to use wander lead remote control
- Easily demountable
- Built in overload protection
- Compact design folds away when not in use
- Manual boom extension with three height settings
Description
The ML500LB is a demountable 500kg Swing Lift for lifting goods into vans. Its extra boom reach coupled with a heavy duty winch make it the perfect tool for cost-effective below ground handling for the utility and construction industry.
Add-Ons/Options
- Down-rated versions available
- 12v or 24v operation from vehicle battery
- Extra rope length up to 12m/40′
- Manual stabiliser leg
- Radio remote control
- Stabiliser/outrigger pads
- Battery protection
- Lifting accessory kit
- Cranked hinge for even greater flexibility
- Easily installed at our own premises, on site or by a vehicle body builder
- Powder coated paint finish
