SwingLift GridLift GL250
| Max Working Load (MWL) | 250 kg |
|---|---|
| Boom Reach | 1210 mm |
| Weight | 52 kg |
Key Features
- 250kg lifting capacity makes light work of seized covers which have been impossible to free using conventional equipment
- Replaces alternative cover handling equipment such as electric winches which can be difficult or unsafe to use
- Hydraulic rams extend and retract the lifter to raise and lower the gully lid
- Smooth, precise and accurate movements for the best possible combination of performance and safety
- Designed to pivot so that the cover can be moved aside for easy access and cleaning of the gully
- Separate frame locks into place on the end of the vertical arm and attaches securely to the gully cover by simple twist clips that can accommodate castings with different profiles
- Remote control keypad allows maintenance crews to stand safely away from any moving parts during lifting and lowering
- Two independent locking pins secure the device safely in the retracted position when the vehicle is moving to comply with vehicle safety regulations
Description

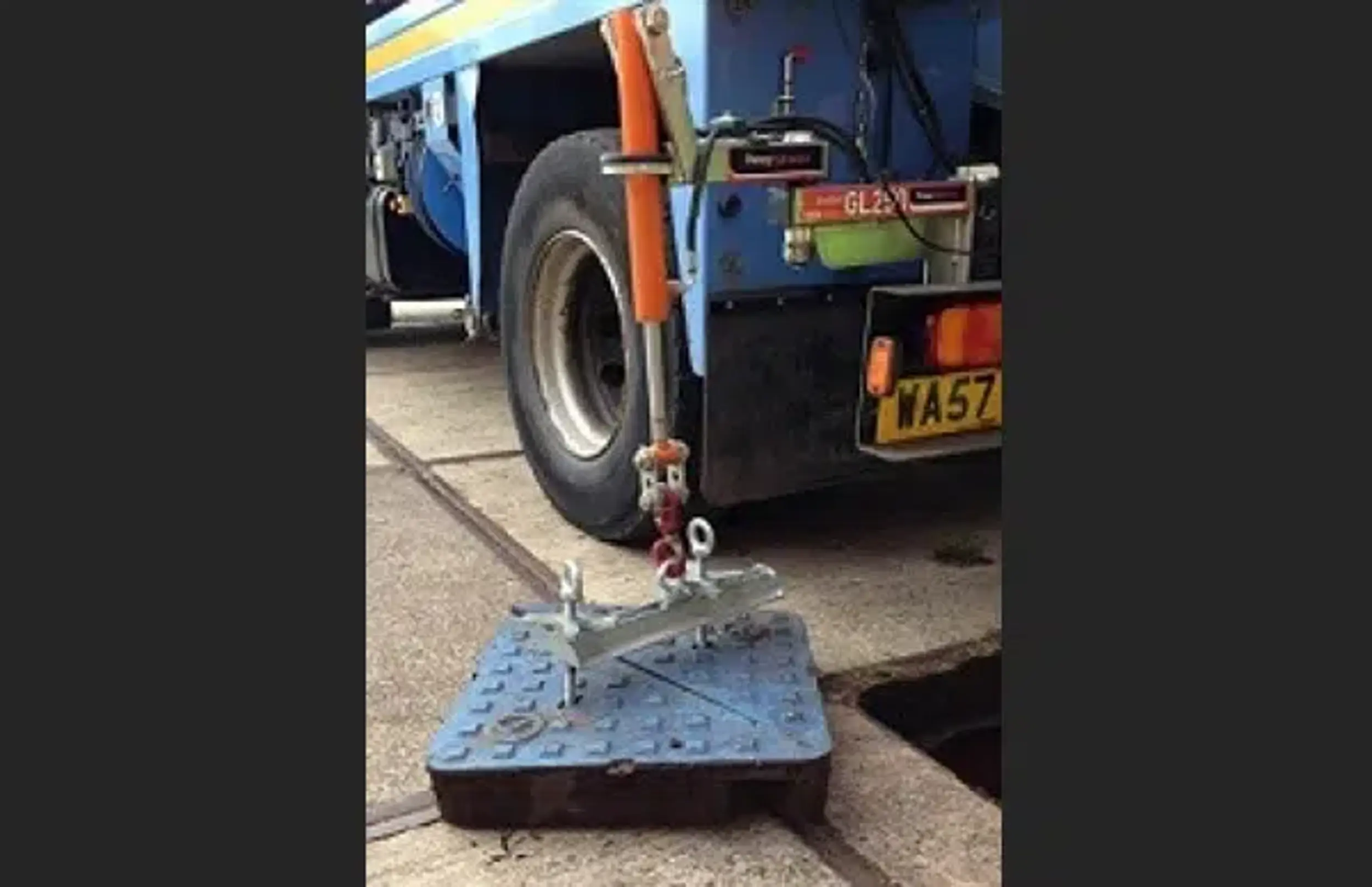

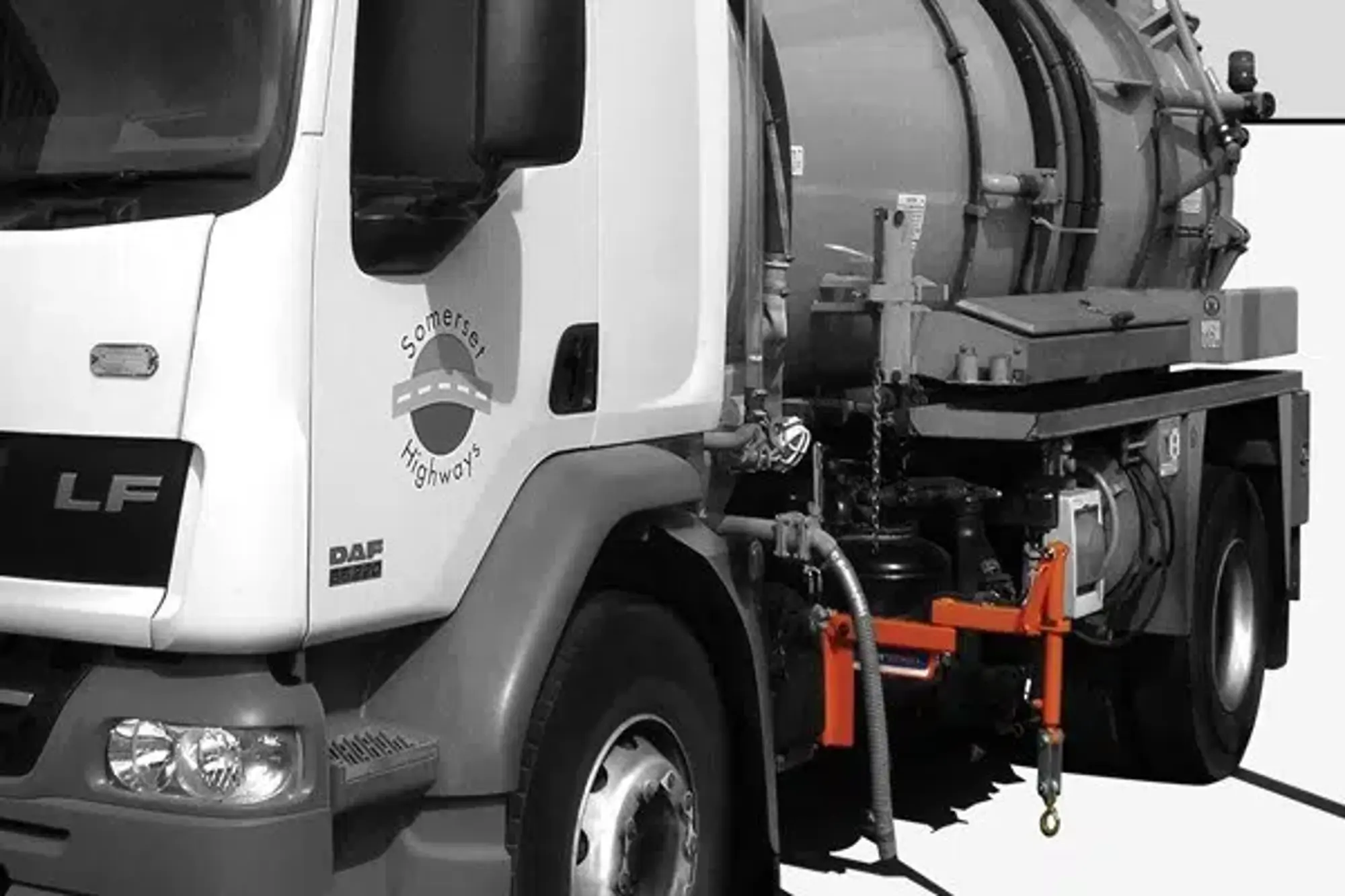

The Penny Engineering GridLift KJ250 can be installed on gully tankers and maintenance vehicles to lift heavy gully and drain covers out of the way for clear access during cleaning and jetting operations.
It can handle covers weighing up to 250kg, is ideal for freeing seized covers, and eliminates the need for crews to handle covers by hand for improved productivity and better health and safety compliance.
*Crane weight includes mounting bracket.
