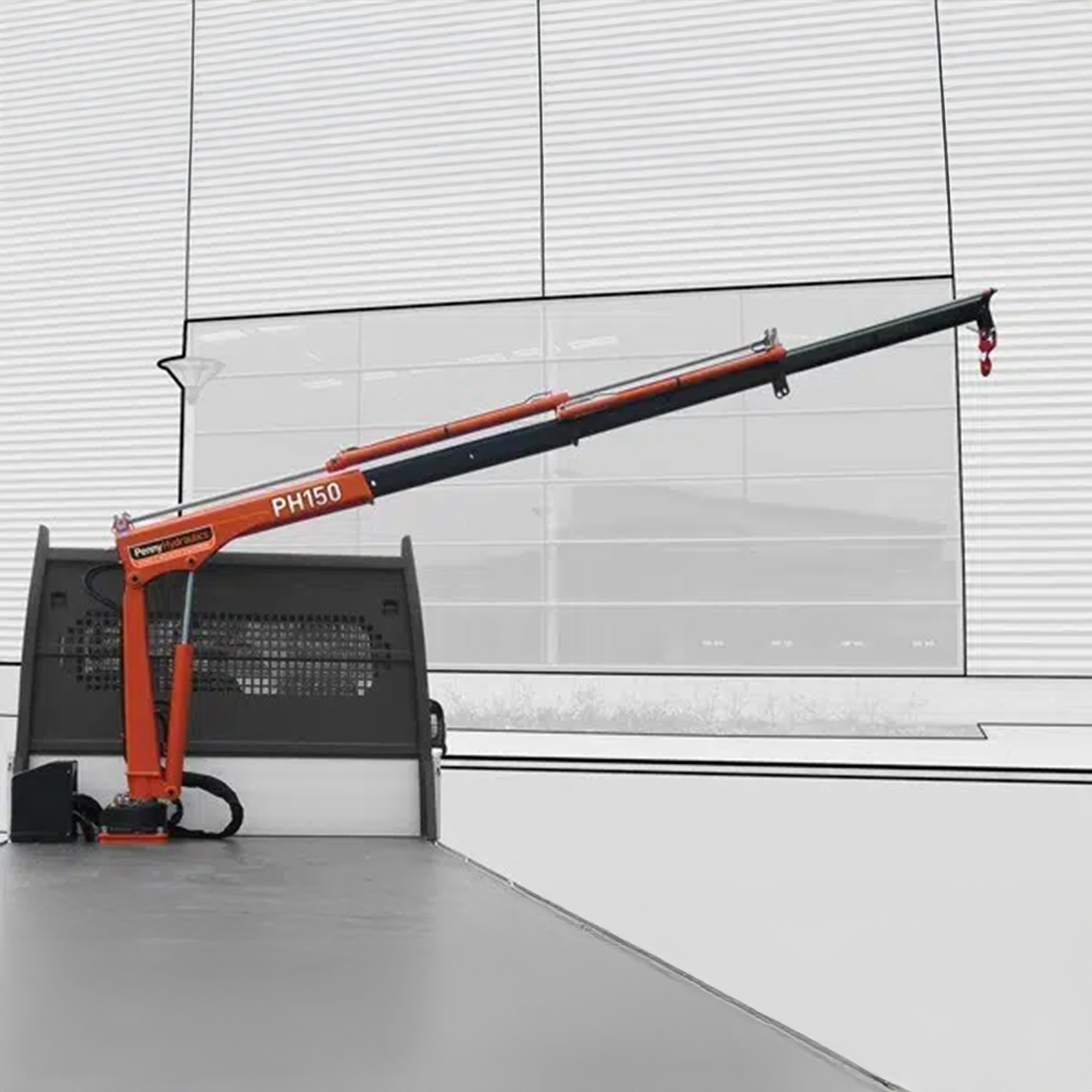

PH150 1.4tm Flatbed Mounted Crane
| Max Working Load (MWL) | 990 kg |
|---|---|
| Boom Reach | 5000 mm |
| Weight | 165 kg |
Key Features
- 14 kNM / 1.4 tm rated crane
- Standard outreach from 3 to 4m
- ECI – Electronic Capacity Indicator
- 330° slewing rotation
- 4 function valve bank
- Motor pump kit with 11 lt. oil tank for electro-hydraulic versions 12/24V (along with battery connection cables)
- 15 lt. oil tank for H (PTO – Power Take Off) version
- Fitting kit inc. tie bolts set, nuts & lock nuts, spare grease cartridge for slewing worm gear
Description
Up to 990kg lifting capacity with up to 5 metres reach makes the PH150 a popular hydraulic crane.
The lightweight crane weighs in at just 165kg, can be supplied with safety devices to comply with current legislation, keeping your team and your vehicle safe.
Downloads
Product Specific
PH150.1 Specification
PH150.2 Specification
PH150.3 Specification
PH Crane Flyer
PH150 Technical Data
PH Installation Manual
ECI – Rated Capicity Indicator: Instructions
LLC – Load Limiting Cell: Instructions
LME04 – Rated Capacity Device: Instructions
SCU – Stability Control Unit Instructions
PH150 Operating & Maintenance Manual
Add-Ons/Options
- Manual extension to 5m
- Crane base with 1 hydraulic and 1 mechanical stabiliser (fixed or tilting)
- Crane base with 2 hydraulic stabilisers (fixed or tilting)
- Slew limit kit
- Boom in transit warning kit
- Micro-switch kit to confirm leg stowage
- 3 – 4 function proportional remote control (by cable or radio)
- 500kg hydraulic winch
- Stabiliser/outrigger pads
- Stabiliser leg extensions
- Marinised paint finish
- Flashing light kit for remote control
Models
| Crane Model | Details |
|---|---|
| PH 150.1 | 1 hydraulic extension |
| PH 150.2 | 2 hydraulic extensions |
| PH 150.3 | 3 hydraulic extensions |
