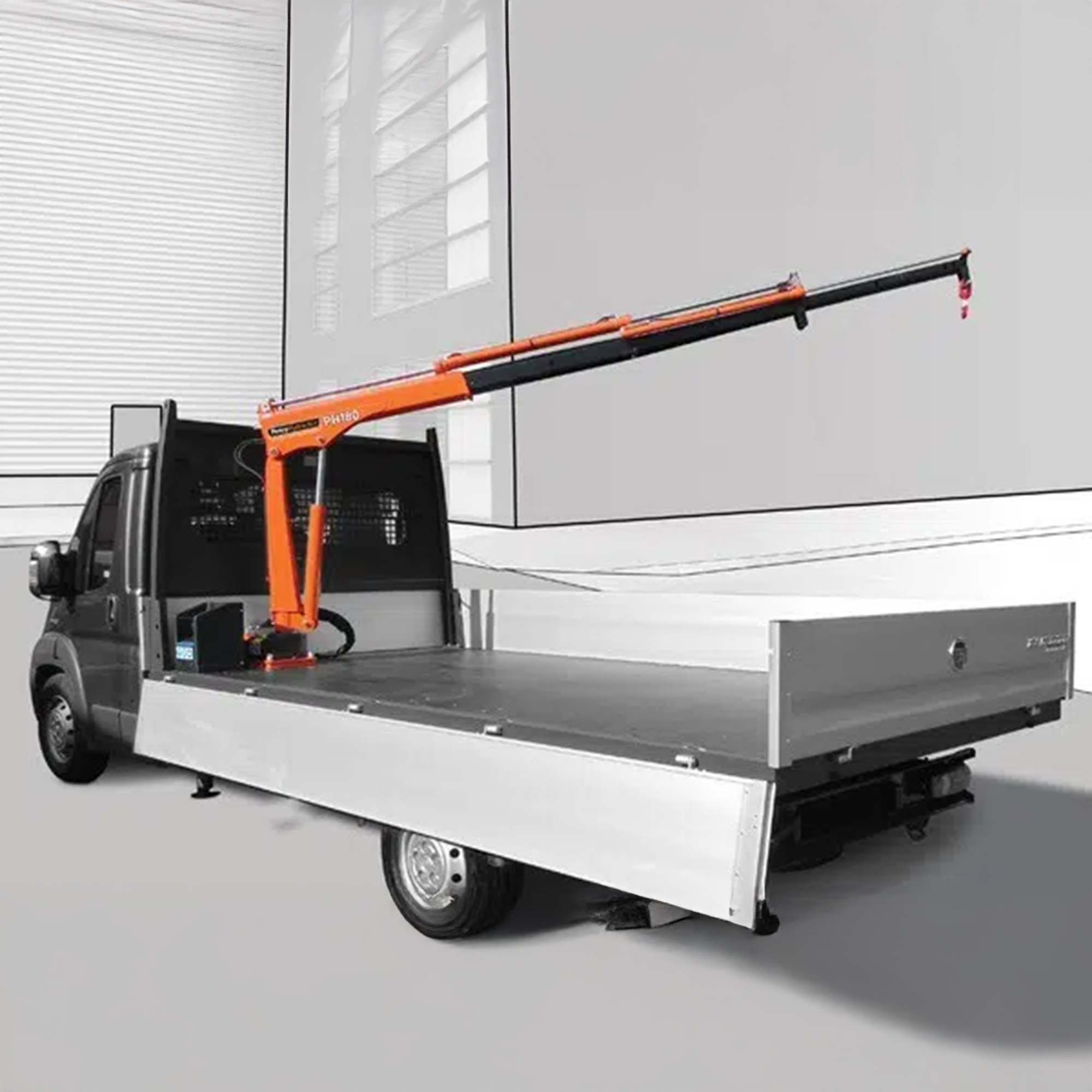

PH180 1.7tm Flatbed Mounted Crane
SKU: PH180
| Max Working Load (MWL) | 1500 kg |
|---|---|
| Boom Reach | 5000 mm |
| Weight | 180 kg |
Key Features
- Crane Weight - 180 kg - 210 kg
- 1.7tm / 17kNm rated crane.
- Standard outreach from 3 to 4 m
- 330° slewing rotation
- ECI – Electronic Capacity Indicator
- 4 function valve bank
- Motor pump kit with 11 lt. oil tank for electro-hydraulic versions 12/24V (along with battery connection cables)
- 15 lt. oil tank for H (PTO – Power Take Off) version
- Fitting kit inc. tie bolts set, nuts & lock nuts, spare grease cartridge for slewing worm gear
Description
The PH180 weighs in at only 180kg, has a max working load of 1500kg and a maximum reach of up to 4 metres. The PH180 has a range of safety devices to comply with current legislation and to protect your team and your fleet.
Downloads
Product Specific
PH180.2 Specification
PH180.3 Specification
PH180 Technical Data Sheet
PH Installation Manual
ECI – Rated Capicity Indicator: Instructions
LLC – Load Limiting Cell: Instructions
LME04 – Rated Capacity Device: Instructions
SCU – Stability Control Unit Instructions
PH180 Operating & Maintenance Manual
Add-Ons/Options
- Crane base with 1 hydraulic and 1 mechanical stabiliser (fixed or tilting)
- Crane base with 2 hydraulic stabilisers (fixed or tilting)
- LLC or LME04 & SCU monitoring device
- Slew limit kit
- Boom in transit warning kit
- Micro-switch kit to confirm leg stowage
- 3 – 4 function proportional remote control (by cable or radio)
- 500kg hydraulic winch
- Stabiliser/outrigger pads
- Stabiliser leg extensions
- Marinised paint finish
- Flashing light kit for remote control
