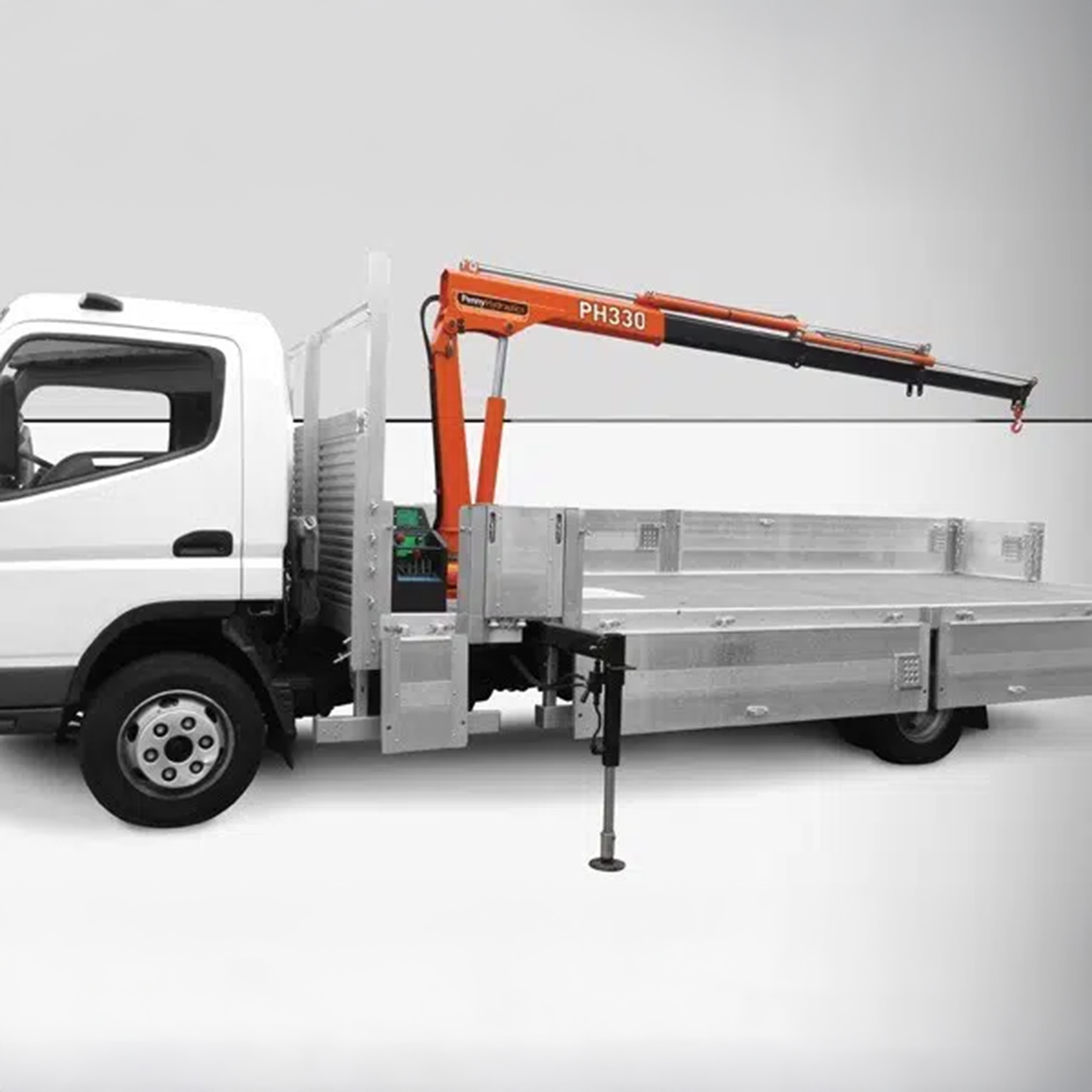

PH330 3.3tm Flatbed Mounted Crane
SKU: PH330
| Max Working Load (MWL) | 2500 kg |
|---|---|
| Boom Reach | 6360 mm |
| Weight | 270 kg |
Key Features
- Crane Weight 270 kg - 345 kg
- 3.3tm / 33kNm rated crane
- Standard outreach from 3.3 to 5.36m
- ECI – Electronic Capacity Indicator
- 360° slewing rotation
- 4 function valve bank
- Motor pump kit with 11 lt. oil tank for electro-hydraulic versions 12/24V (along with battery connection cables)
- 15 lt. oil tank for H (PTO – Power Take Off) version
- Fitting kit inc. tie bolts set, nuts & lock nuts, spare grease cartridge for slewing worm gear
Description
The PH330 weighs from just 270kg. Rated fully the crane can lift 2500kg and with an optional maximum outreach of over 6.3 metres this is a serious contender.
Downloads
Product Specific
PH330.2 Specification
PH330.3 Specification
PH330.4 Specification
PH330 Technical Data
PH Installation Manual
ECI – Rated Capicity Indicator: Instructions
LLC – Load Limiting Cell: Instructions
LME04 – Rated Capacity Device: Instructions
SCU – Stability Control Unit Instructions
PH330 Operating & Maintenance Manual
Add-Ons/Options
- Crane base with 2 hydraulic stabilisers (fixed or tilting)
- Additional beam with hydraulic stabilisers
- LLC, LME04 or LME04 & SCU monitoring devices
- Slew limit kit
- Boom in transit warning kit
- Micro-switch kit to confirm leg stowage
- 3 – 4 function proportional remote control (by cable or radio)
- 700kg hydraulic winch (for H versions only)
- Stabiliser/outrigger pads
- Stabiliser leg extensions
- Marinised paint finish
- Flashing light kit for remote control
