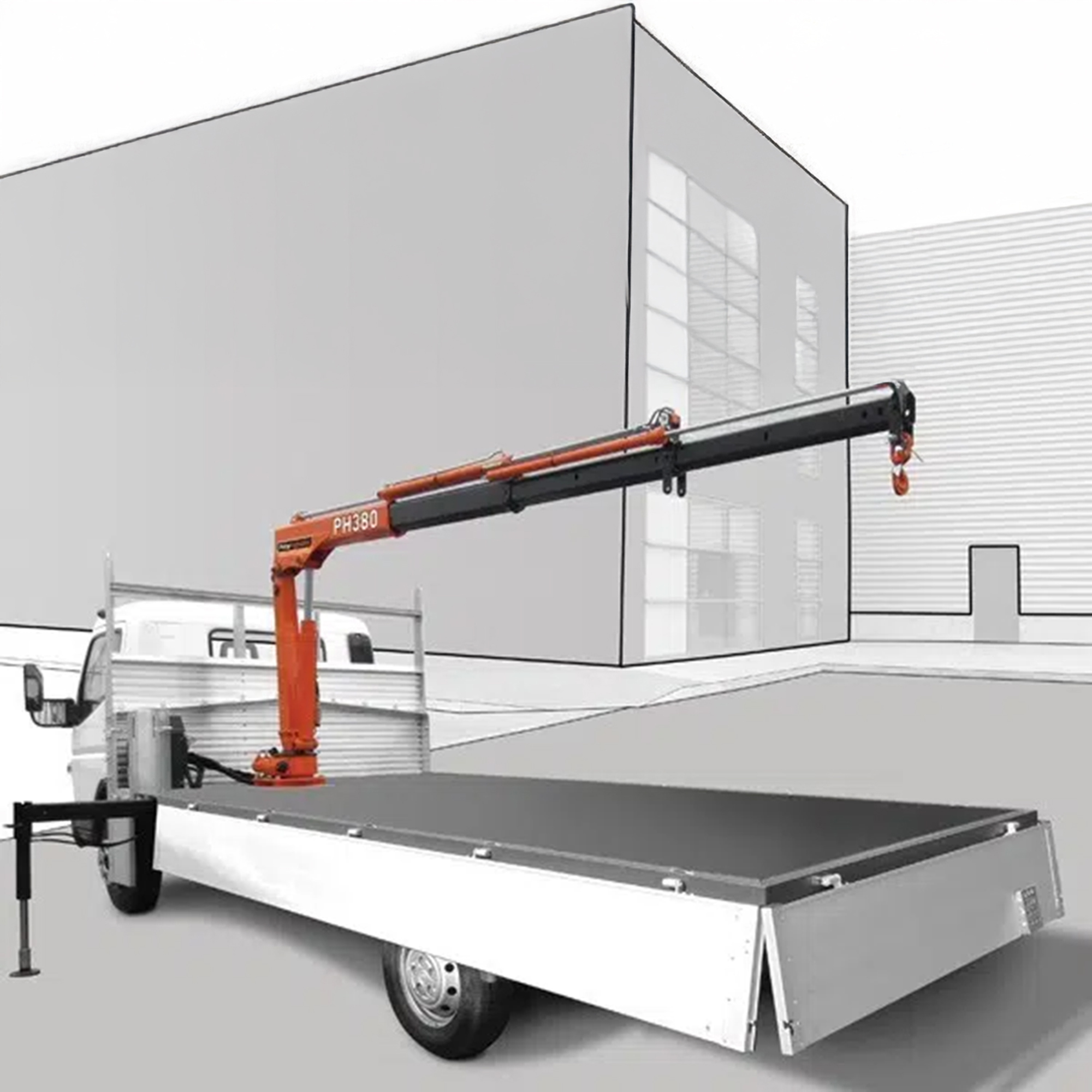

PH380 3.8tm Flatbed Mounted Crane
SKU: PH380
| Max Working Load (MWL) | 2650 kg |
|---|---|
| Boom Reach | 6790 mm |
| Weight | 310 kg |
Key Features
- Crane Weight 310 kg - 395 kg
- 3.8tm / 37kNm rated hydraulic crane
- Standard outreach from 3.65 to 5.79m
- ECI – Electronic Capacity Indicator
- 360° slewing rotation
- 4 function valve bank
- Motor pump kit with 11 lt. oil tank for electro-hydraulic versions 12/24V (along with battery connection cables)
- 15 lt. oil tank for H (PTO – Power Take Off) version
- Fitting kit inc. tie bolts set, nuts & lock nuts, spare grease cartridge for slewing worm gear
- Stabiliser/outrigger pad
- Barrel grab
Description
The PH380 is the largest crane available with 12/24v battery power. This crane has a maximum rated capacity of 2650kg and an optional outreach in excess of 6.7 metres. With a low self-weight from only 310kg, this crane is ideally suited to 5t-7.5t+ vehicles.
Downloads
Product Specific
Add-Ons/Options
- Crane base with 2 hydraulic stabilisers (fixed or tilting)
- Additional beam with hydraulic stabilisers
- LLC, LME04 or LME04 & SCU monitoring devices
- Slew limit kit
- Boom in transit warning kit
- Micro-switch kit to confirm leg stowage
- 3 – 4 function proportional remote control (by cable or radio)
- 990kg hydraulic winch (for H versions only)
- Stabiliser/outrigger pads
- Stabiliser leg extensions
- Marinised paint finish
- Flashing light kit for remote control
Models
| Model | Specification |
|---|---|
| PH 380.2 | 2 hydraulic extensions |
| PH 380.3 | 3 hydraulic extensions |
| PH 380.4 | 4 hydraulic extensions |
