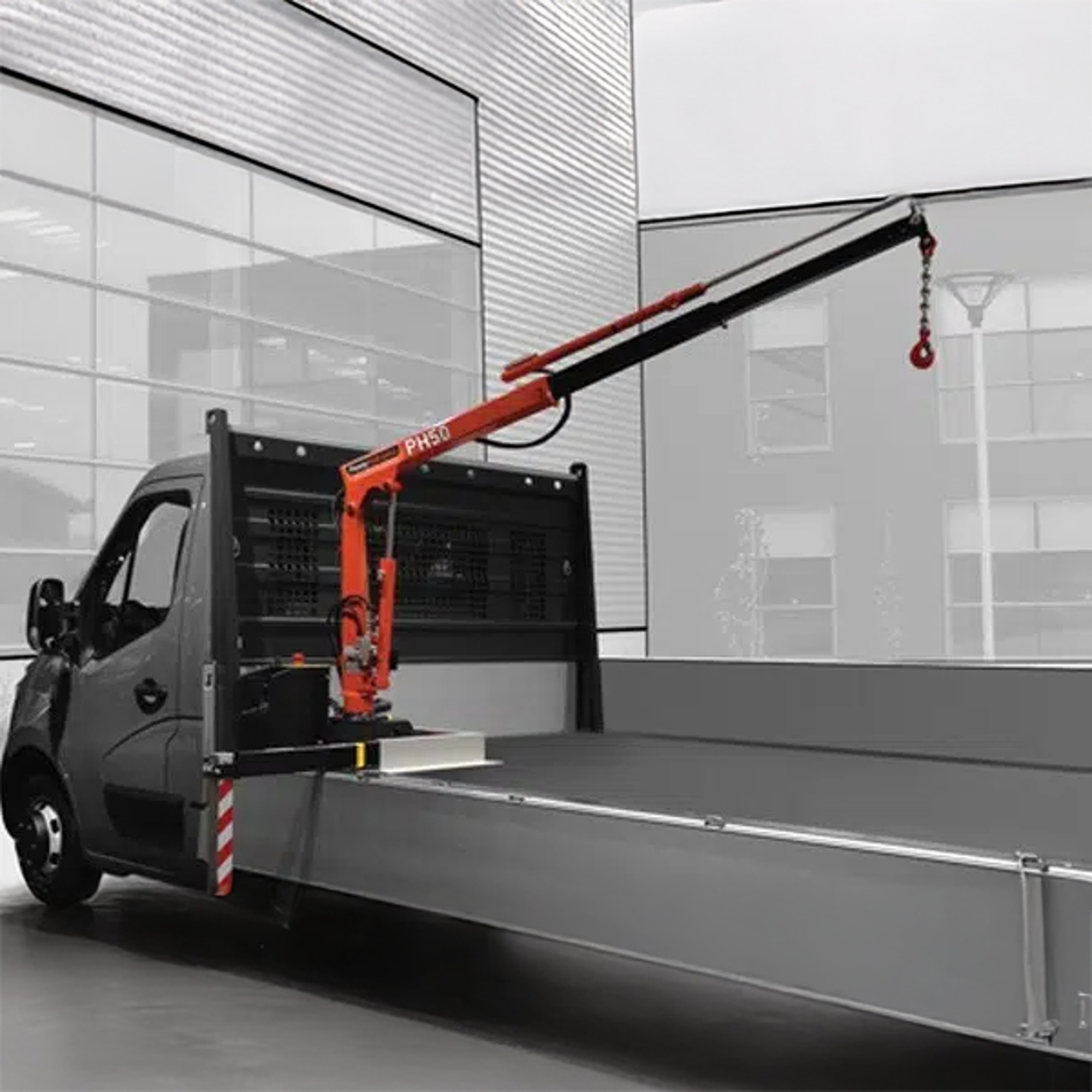

PH50 0.5tm Flatbed Mounted Crane
| Max Working Load (MWL) | 500 kg |
|---|---|
| Boom Reach | 2470 mm |
| Weight | 60 kg |
Key Features
- Crane Weight 60 kg - 95 kg
- Manual version – with pump up boom, pump operated slewing & boom extension
- Electro-hydraulic version with hydraulic boom lift, extension & slew powered by simple connection to a battery source
- Easy to assemble & demount
- Simple to operate
Description
A small, lightweight, compact crane with a wide range of variations to suit most applications including pick-ups, vans, ATVs and trailers.
Add-Ons/Options
- Quick fastening kit – allows for fast & easy deployment and removal of the crane. Also allows one crane to be mounted to multiple vehicles
- Manual stabiliser leg kit
- 200kg electric winch
- Backward attachment kit – for van applications to help centre the load for ease of loading
- Fitting kit
- Stabiliser/outrigger pads
- Stabiliser leg extensions
- Marinised paint finish
Models
| Crane Model | Extension Type | Power Supply | SlewingType |
| 50.2M PLH | 2 Manual Extensions | Hand Pump | Slewing by Lever |
| 50.2M ERH | As above | Electro-Hydraulic | Hydraulic Slew |
| 50.2H PLH | 1 Hydraulic + 1 Manual Extension | Hand Pump | Slewing by Lever |
| 50.2H ELH | As above | Electro-Hydraulic | Slewing by Lever |
| 50.2H ERH | As above | Electro-Hydraulic | Hydraulic Slew |
| 50.2 ERS12 | 2 Hydraulic Extensions | Electro-Hydraulic | Hydraulic Slew |
| 50.2H -HY (PTO) | As above | PTO Hydraulic Pump | Hydraulic Slew |
