PH500 & PH500L Marine for Off-Road Vehicles & Boats
| Max Working Load (MWL) | 3300 kg |
|---|---|
| Boom Reach | 6750 mm |
| Weight | 500 kg |
Key Features
- Crane Weight 500 kg - 550 kg
- Standard outreach from 3.64 to 5.75m
- ECI- Electronic Capacity Indicator
- LME04 – Load Limiting Device
- 360° double rack and pinion slewing
- Maximum working slope 15°
- 4 function valve bank (one free)
- Slewing torque 16 kNm
- PTO (Power Take Off)
- 30 lt. oil tank
- Counter flange
- Fitting kit inc. tie bolts set, nuts and lock nuts, spare grease cartridge for slewing worm gear
Description

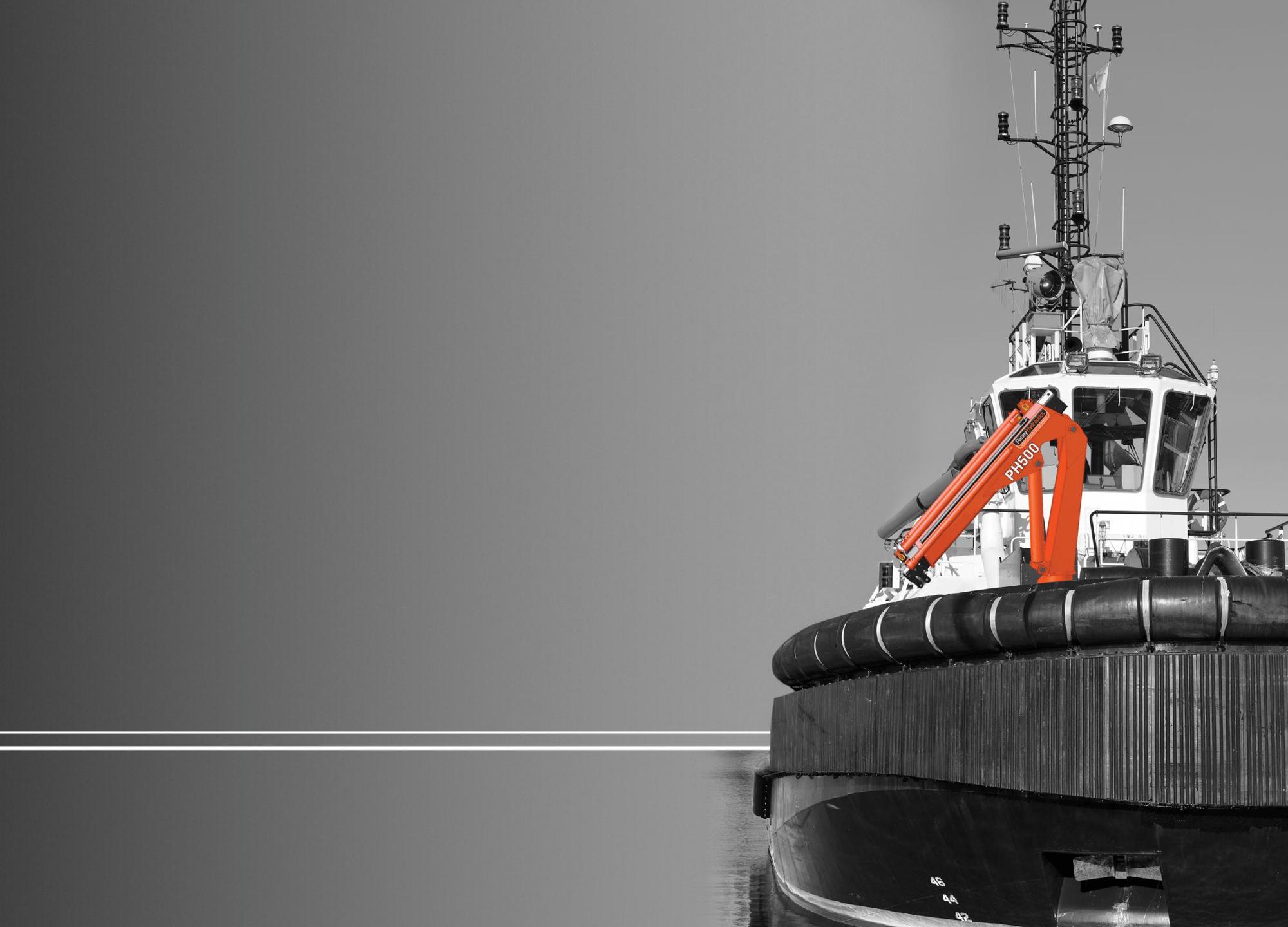

The PH400 and PH500 cranes are designed for heavy duty industrial use and for installation on off-road vehicles, pay welders, tracked vehicles, ships and boats.
Their unique structural features, including the high slewing torque and the rotation system by double rack and pinion, make them suitable to bear stronger winds and steeper inclines than standard cranes.
PH 400 and PH 500 are often incorporated in complex machinery and often used without hook as hydraulic booms in order to meet the specific needs in different fields, such as mining, forestry and marine applications. A special corrosion-proof treatment is carried out on the marine version.
The range includes 2 models differing in lifting capacity: 4 tm for PH400 and 5 tm for PH500. For both models you can choose between an outreach ranging from 3.65m to 5.75m.
Downloads
Product Specific
Add-Ons/Options
- proportional radio remote control
- proportional cable remote control
- 990kg high speed winch with 30m rope
- Flashing light kit for remote control
