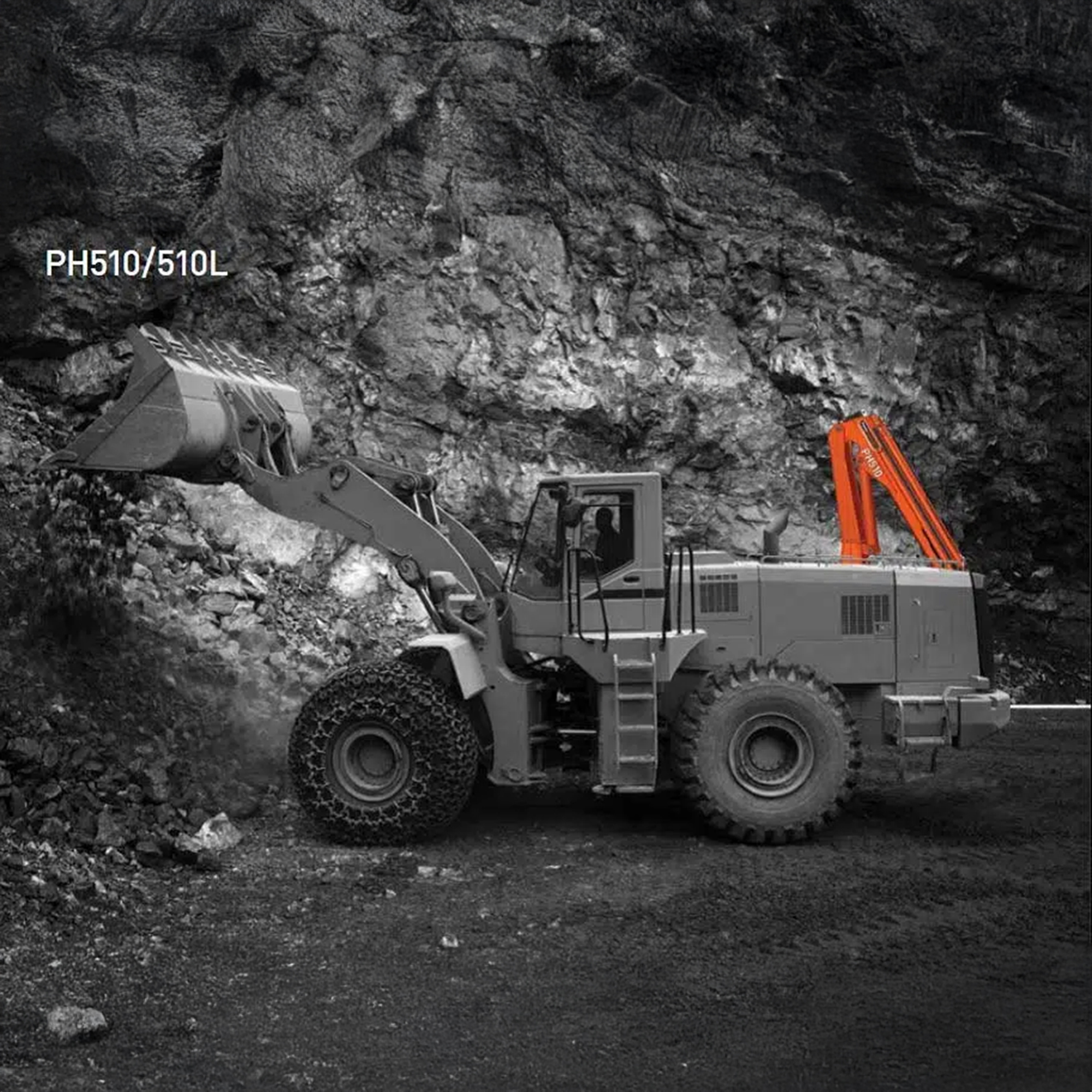

PH510 & PH510L 4.8tm Flatbed Mounted Cranes
| Max Working Load (MWL) | 2900 kg |
|---|---|
| Boom Reach | 6830 mm |
| Weight | 485 kg |
Key Features
- Crane Weight 485 kg - 565 kg
- 4.8tm / 49kNm rated crane
- Standard outreach from 3.64 to 6.83m
- LME04 – Load Limiting Device
- 330° ball bearing slewing rotation
- 4 function valve bank (one free)
- PTO (Power Take Off)
- 30 lt. oil tank
- Fitting kit inc. tie bolts set, nuts & lock nuts, spare grease cartridge for slewing worm gear
Description
The PH range is topped by the PH510. This PTO driven crane has a self-weight from 485kg. It has a maximum rated capacity of 3300kg and optional boom outreach of over 6.8 metres. At 6.8 metres the PH510 is still capable of lifting 700kg.
Downloads
Product Specific
PH510.2 Specification
PH510.3 Specification
PH510L.2 Specification
PH510L.3 Specification
PH510L.4 Specification
PH510 Technical Data
PH Installation Manual
ECI – Rated Capicity Indicator: Instructions
LLC – Load Limiting Cell: Instructions
LME04 – Rated Capacity Device: Instructions
SCU – Stability Control Unit Instructions
PH510 Operating & Maintenance Manual
Add-Ons/Options
- Supplementary hydraulic stabiliser legs with manual or hydraulic extension (3300mm – 4400mm spread)
- LME04 Load Limiting Device & SCU Stability Control Unit
- Slew limit kit
- Boom in transit warning kit
- Micro-switch kit to confirm leg stowage
- 3 – 4 function proportional remote control (by cable or radio)
- 990kg hydraulic winch
- Stabiliser/outrigger pads
- Hydraulic leg extensions
- Marinised paint finish
