LoadLift Standard
| Max Working Load (MWL) | 250 kg |
|---|---|
| Max Loading Height | 850 mm |
| Weight | 100 kg |
Key Features
- Working platform size of 800mm front to back x 650mm across
- Fixed toes to 3 sides
- Finish - spray black
- Folding platform
- Stowage catch

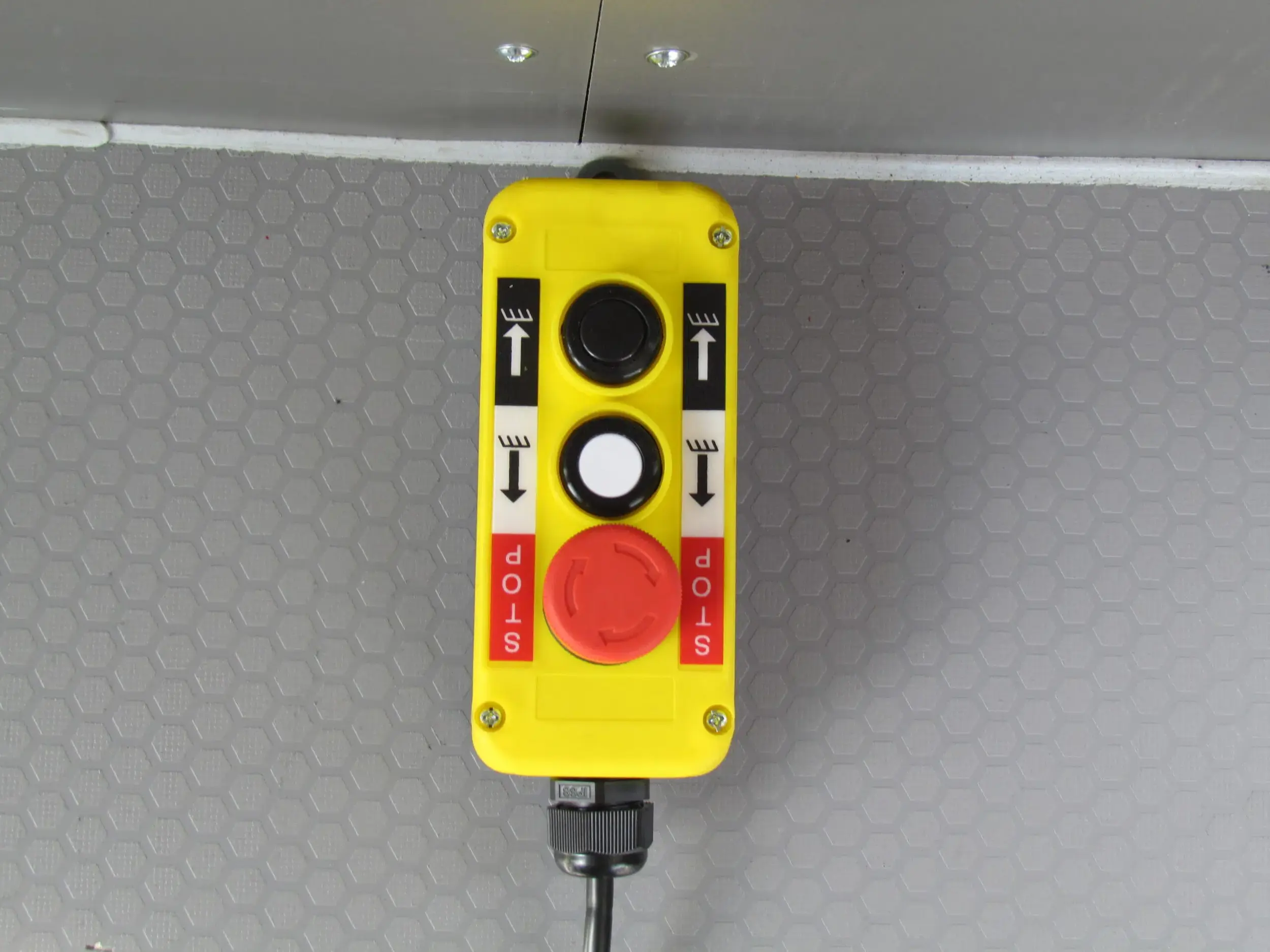

- Fixed and remote control
- Side / Rear door fitting
- Maintains unhindered access
- Compact design & folding platform maximise floor space
- Low weight of approximately 100kg for minimal impact on vehicle payload
- Hydraulically powered for a smooth action
- 12v or 24v operation from vehicle battery
- Built in overload protection
Description
A unique, lightweight and compact lifting platform for loading vans quickly and efficiently via the rear or side cargo doors.
Downloads
Product Specific
LoadLift Fitting Instructions
LoadLift Standard Dimensional Drawing
LoadLift Operating & Maintenance Manual

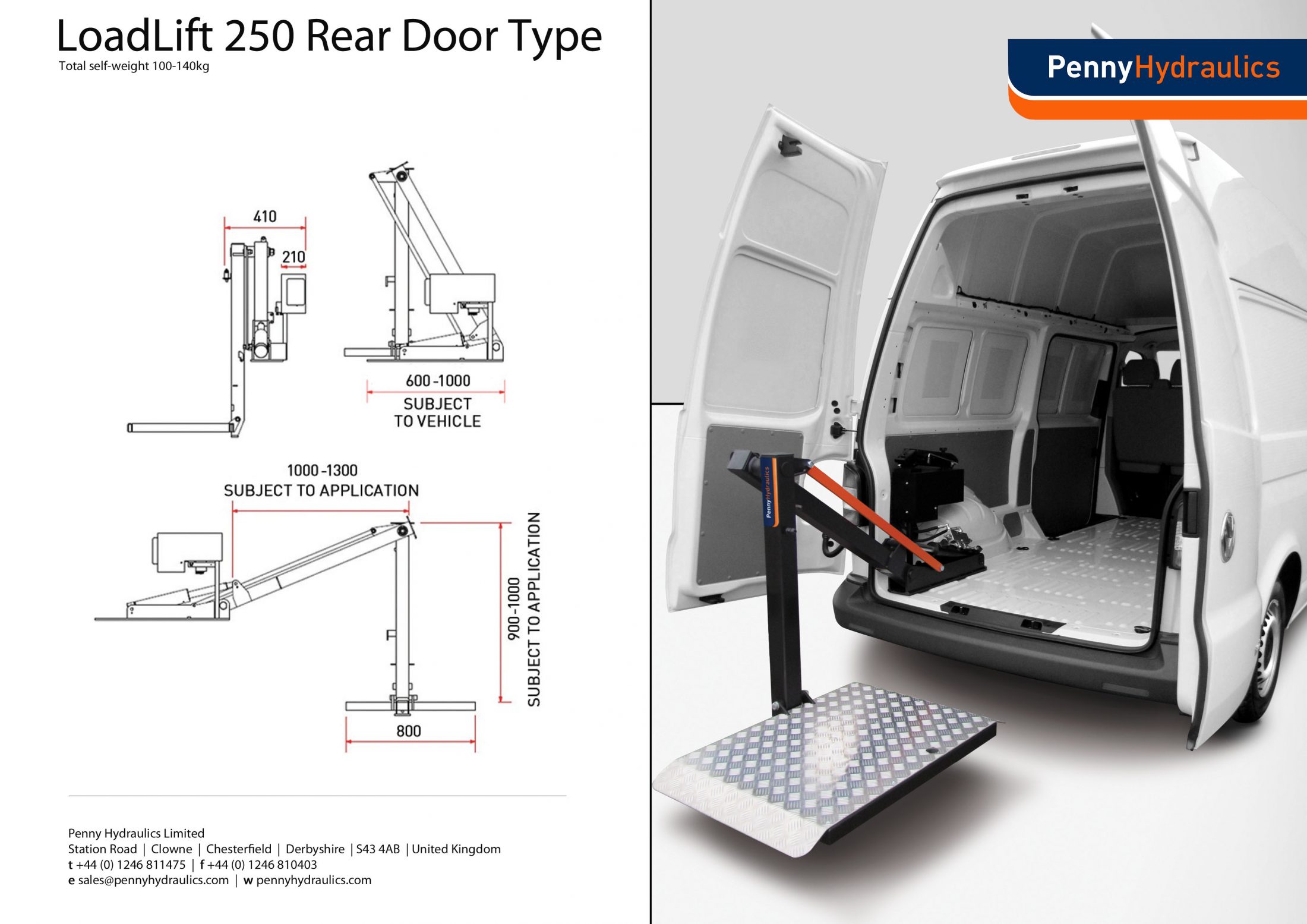

LoadLift Rear Door Dimensional Drawing
Van Loading Platforms
Add-Ons/Options
- Box section frame with alloy top
- Lashing bar, 500mm long bar with lashing eyes at each end
- Increased platform size 800mm x 750mm
- Increased platform size 800mm x 800mm
- Heavy duty mechanism to cope with larger platforms, bed heights between 850mm and 1000mm, some after-market steps, larger platforms or maximum working load above 250kgs to a max of 500kgs when possible.
- Ratchet strap
- 12v or 24v
- Side/rear door application
