LoadLift Trolley Type
| Max Working Load (MWL) | 250 kg |
|---|---|
| Max Loading Height | 850 mm |
| Weight | 140 kg |
Key Features
- Low-level platform 940mm front to back x 780mm across.
- Hinged toes front and back that are both operable from the rear of the vehicle
- Finish - spray black
- Folding platform
- Rear/side door application
- Stowage catch
- Fixed and remote control
- Compact design & folding platform maximises floor space
- Low weight of approximately 140kg for minimal impact on vehicle payload
- Internal mounting prevents damage due to sleeping policemen & unauthorised use
- Maintains unhindered access
- Hydraulically powered for a smooth action
- 12v or 24v operation from vehicle battery
- Built in overload protection
Description

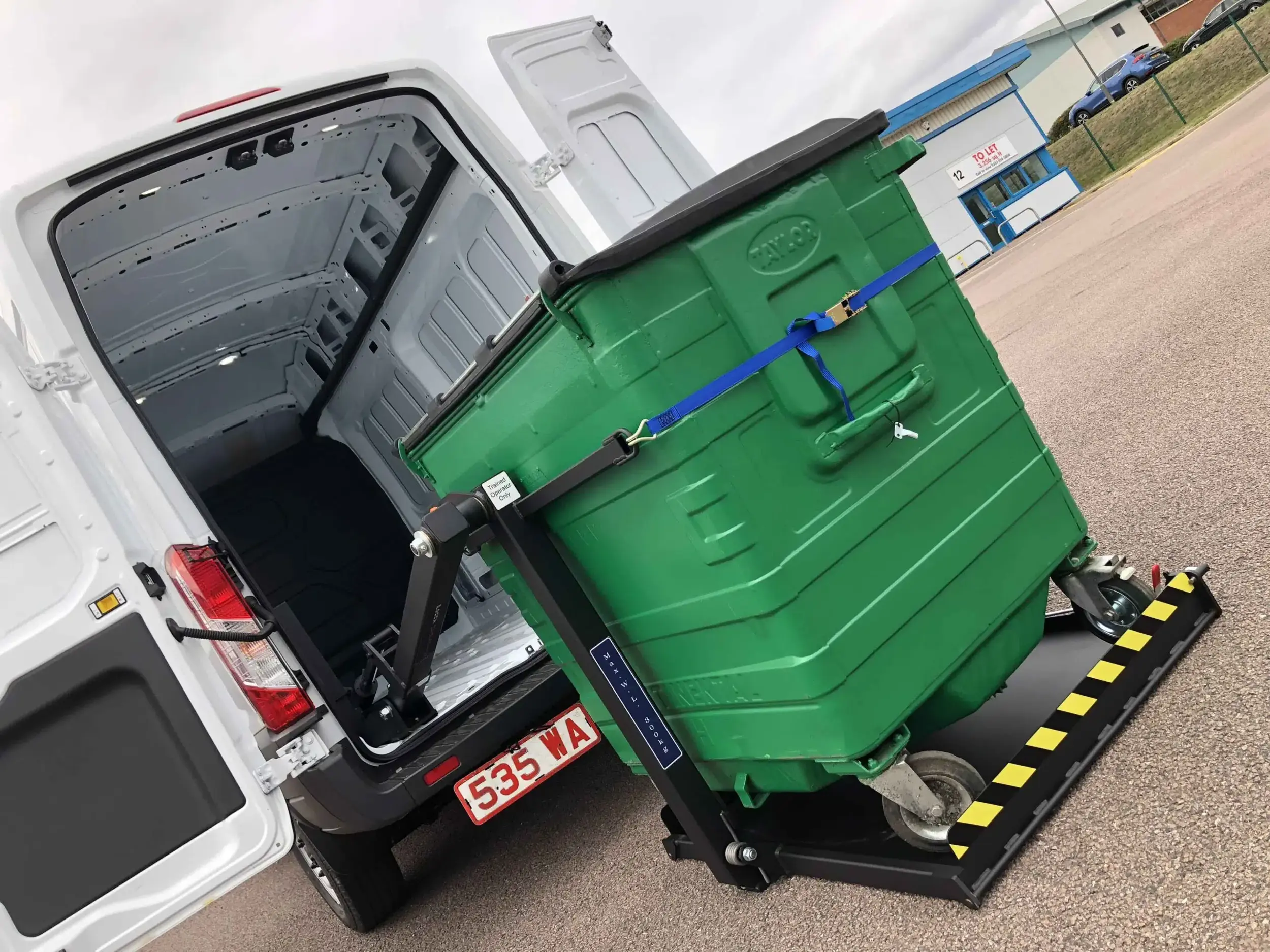

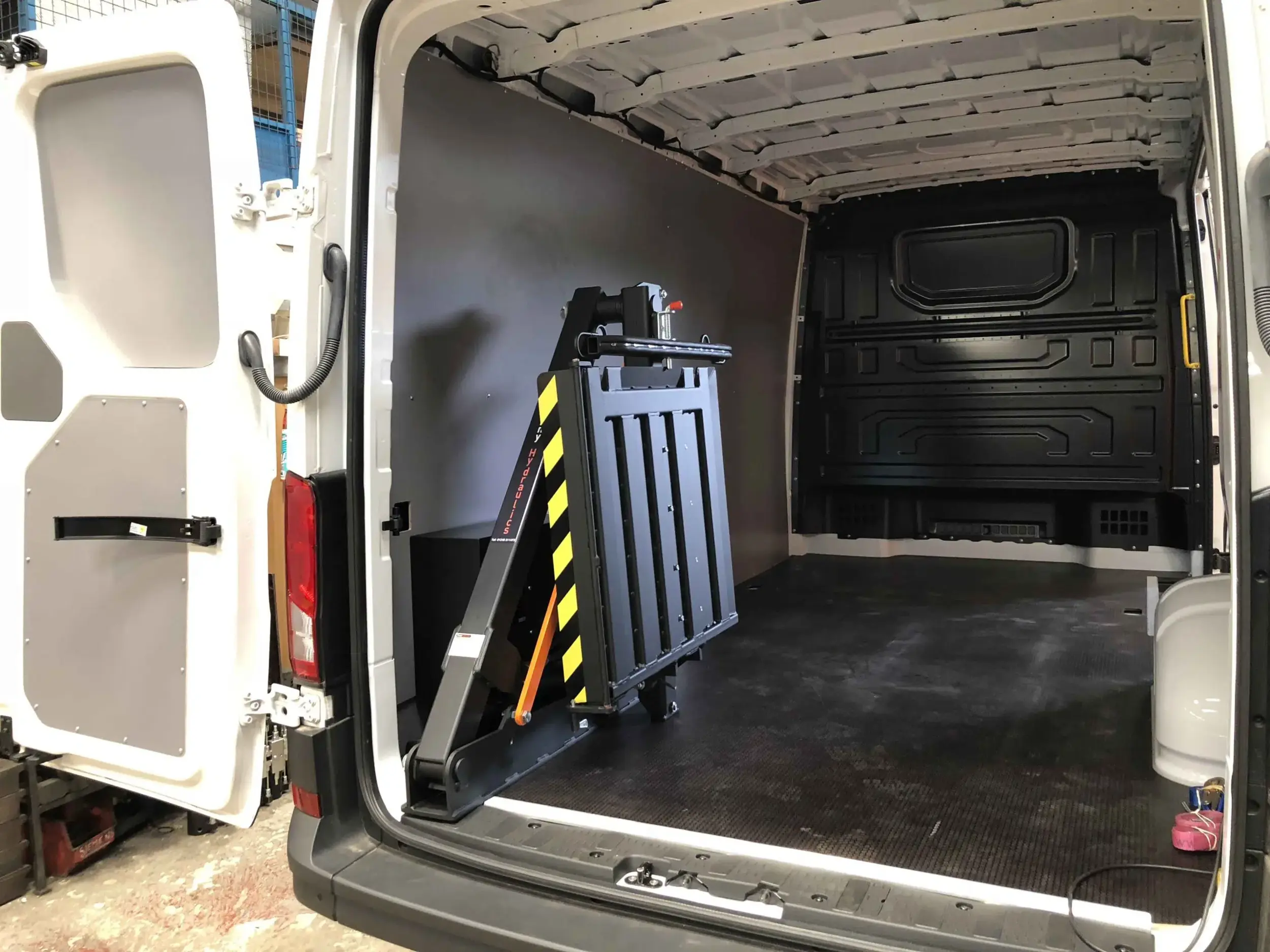

The trolley type LoadLift is a compact and lightweight lifting platform specifically designed for loading trolleys up to 250kg. The lift can be installed at the side doors or rear doors of a van dependent on customer requirements.
A number of options are available including automatic roll-stops to ensure the load remains secure on the platform during the lift cycle. Additional lashing rings can be specified to secure the load during transit.
NOTE: Please check platform dimensions if the van is to have racking installed. An uprated power pack may be required if aftermarket steps or toe bars are fitted.
Downloads
Product Specific
Van Loading Platforms
Add-Ons/Options
- Rear/side door installation
- Narrower platform for smaller door openings, 940mm front to back x 750mm across.
- Lashing bar, 500mm long bar with lashing eyes at each end
- Larger platforms
- Heavy-duty mechanism to cope with larger platforms, bed heights between 850mm and 1000mm, some after-market steps, larger platforms or maximum working load above 250kgs to a max of 500kgs when possible.
- Ratchet strap
- 12v or 24v battery
- Special finish
