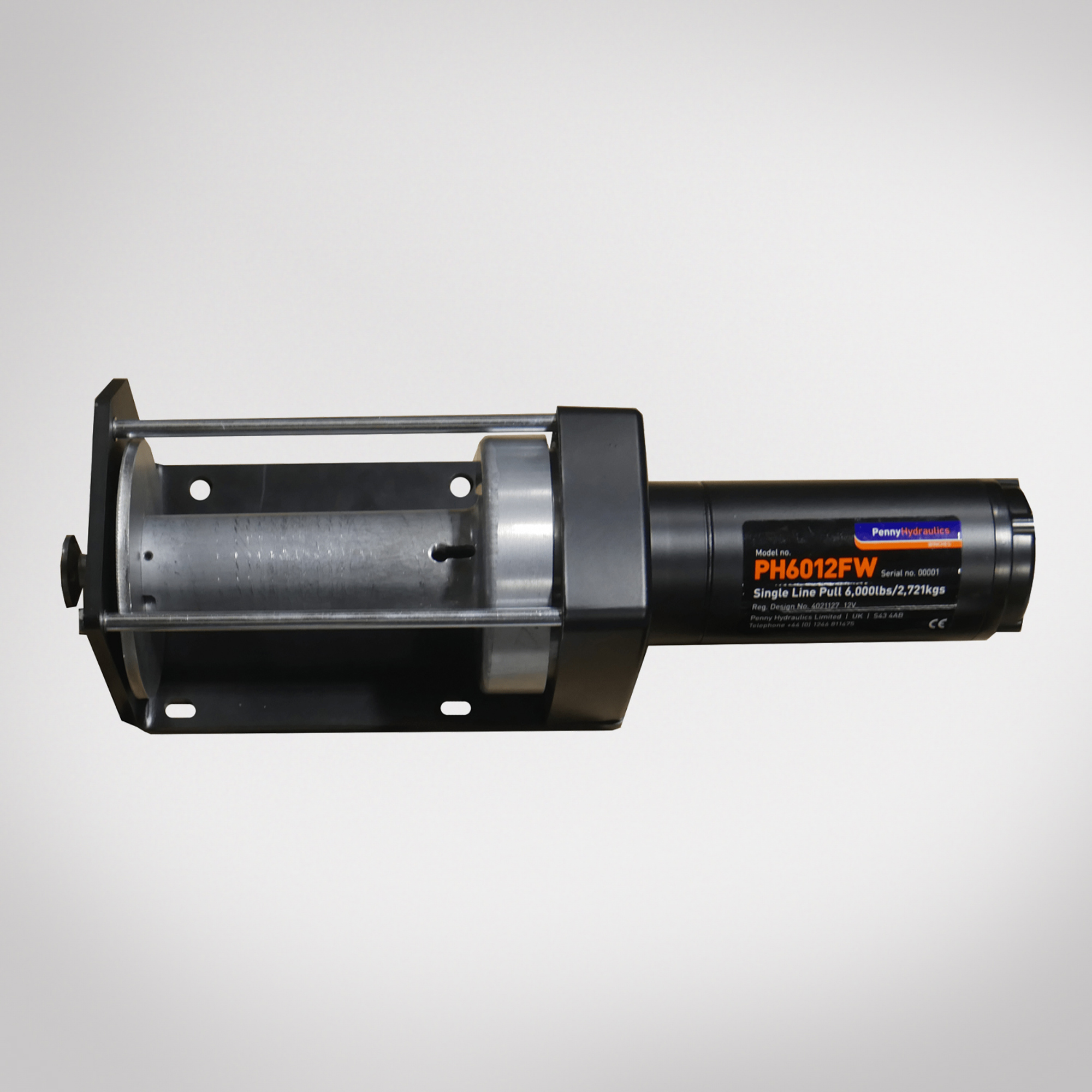

PH6000 12V Electric Winch – 6000lb Line Pull (Free Wheel, Extended Drum)
SKU: PH6012FWRE
| Direct Lifting Capacity | 500 kg |
|---|---|
| Winching Capacity | 2721 kg |
| Weight | 15 kg |
Key Features
- 12 volt DC motor
- Sealed for life
- Machined gear sets
- High torque drum brake
- Developed for lifting as well as winching
- Direct lifting capacity 500kgs
- Winching capacity 2721kgs. (Rolling load line pull)
- Heavy-duty bearings
- Extended drum capacity of over 20 metres of 6 mm rope
- Maximum noise level is below actions levels at 74dB(A)
- Duty cycle running 1.5 minutes to off 14 minutes
- Free spooling toggle to enable a quick and easy way to pull rope off the drum.
Description
This is the high torque variant of the PH3300 winch and more suitable to applications at the higher end of the PH3300 capabilities and longer winch times. The extended drum allows for an additional 8 metres of rope providing over 20 metres in total.
Downloads
Add-Ons/Options
- 24 volt DC motor
- Free wheel facility to drum to enable free spool out function. Not available on models to be used for lifting
- Fairlead
- Remote control handset
- Solenoids
