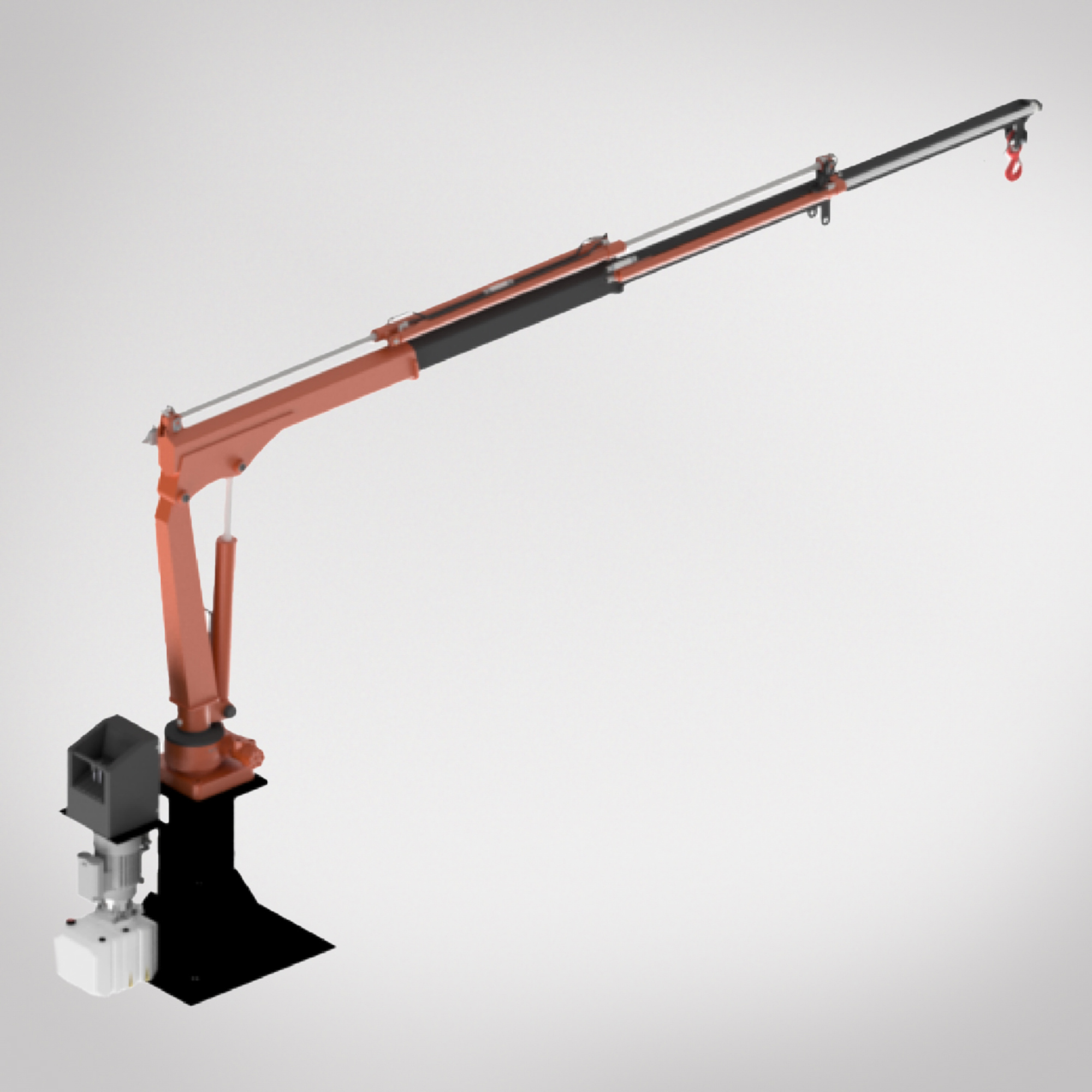

WorkLoader2200 Factory Crane
| Max Working Load (MWL) | 2200 kg |
|---|---|
| Weight | 500 kg |
Key Features
- Max lift 2.2 tonnes at 1.0 metre reach
- Max outreach 5.2 metres with 350kgs load – with extension piece
- Integral electrical pump with lever controls mounted above
- Load limiting pressure relief valve
- Power supply 240 volt single-phase 13 amps
- Total weight of crane, subframe and pump 450 kgs
Description
Loading tooling and removing sections for service work can be a back-breaking and difficult. Using a fork-lift truck is far from ideal with the close proximity of workmen and expensive machines. Mechanising the operation with a WorkLoader 2200 will speed up the operation and improve safety. It can even be used to lift heavy and awkward items onto a work bench.
