MezzHD 1000kg Mezzanine Goods Lift
![Bova 5[1]](/media/ntice205/bova-5-1.jpg?rmode=max&width=2000&height=2000&v=1dc4d95229072b0)
![Bova 1[1]](/media/mt4lyzkx/bova-1-1.jpg?rmode=max&width=2500&height=2500&v=1dc4d952549c650)
![Bova 2[1]](/media/ruya0geq/bova-2-1.jpg?rmode=max&width=2500&height=2500&v=1dc4d9535f5a870)
![Bova 3[1]](/media/od5clo3i/bova-3-1.jpg?rmode=max&width=2500&height=2500&v=1dc4d95389c3760)
![Bova 4[1]](/media/r4lpvykv/bova-4-1.jpg?rmode=max&width=2500&height=2500&v=1dc4d953b2be2f0)
![New Style Wellingborough[1]](/media/4zmmzw4w/new-style-wellingborough-1.jpg?rmode=max&width=2500&height=2500&v=1dc4d953d965340)
![Photo 25 05 2023 08 58 34 Scaled[1]](/media/ltbowzpd/photo-25-05-2023-08-58-34-scaled-1.jpg?rmode=max&width=2500&height=2500&v=1dc4d9540668a40)
![Photo 25 05 2023 09 00 51 Scaled[1]](/media/dwpbjbcr/photo-25-05-2023-09-00-51-scaled-1.jpg?rmode=max&width=2500&height=2500&v=1dc4d95431640f0)
![Photo 25 05 2023 09 05 18 Scaled[1]](/media/hjln1wdx/photo-25-05-2023-09-05-18-scaled-1.jpg?rmode=max&width=2500&height=2500&v=1dc4d9545bbbe70)
![Eclipse Colour Print 1[1]](/media/j4enw455/eclipse-colour-print-1-1.jpg?rmode=max&width=2500&height=2500&v=1dc4d9548940bc0)
![Eclipse Colour Print 5 1[1]](/media/jexbdrfp/eclipse-colour-print-5-1-1.jpg?rmode=max&width=2500&height=2500&v=1dc4d954b694bd0)
![Eclipse Colour Print 2[1]](/media/uvyj1e2t/eclipse-colour-print-2-1.jpg?rmode=max&width=2500&height=2500&v=1dc4d954e13f970)
![Eclipse Colour Print 3[1]](/media/5pulsos2/eclipse-colour-print-3-1.jpg?rmode=max&width=2500&height=2500&v=1dc4d95504d2090)
![Eclipse Colour Print 4[1]](/media/3sypxhpe/eclipse-colour-print-4-1.jpg?rmode=max&width=2500&height=2500&v=1dc4d95529d2b10)
![Mezzlift Heavy Duty 1000Kg Goodslift[1]](/media/rjvgwgjj/mezzlift-heavy-duty-1000kg-goodslift-1.jpg?rmode=max&width=2500&height=2500&v=1dc4d9555473c70)
SKU: MEZZHEAVY
| Max Working Load (MWL) | 1000 kg |
|---|---|
| Weight | 400 kg |
Key Features
- Floor mounted, with a 50mm platform so no requirement for a pit

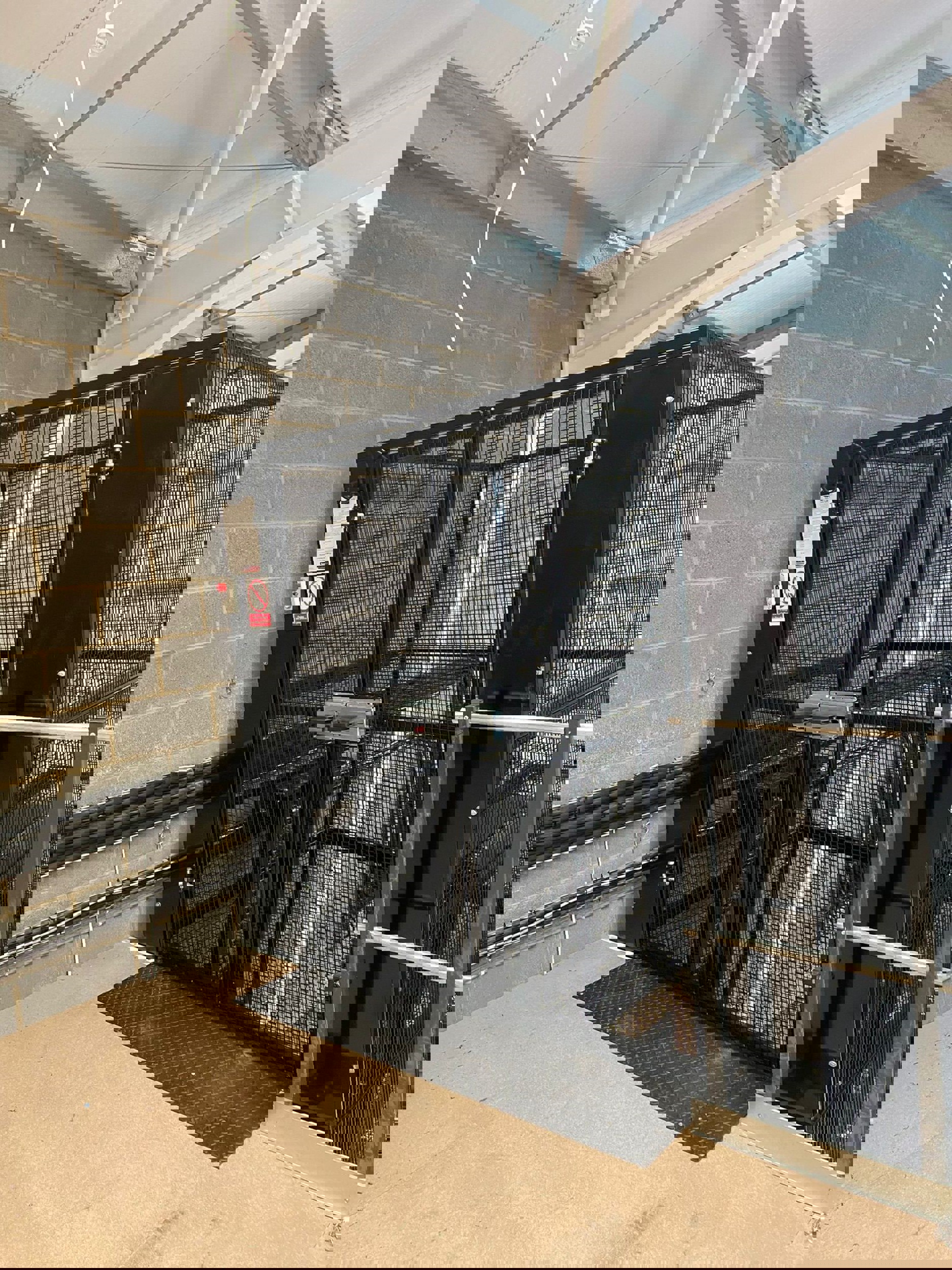

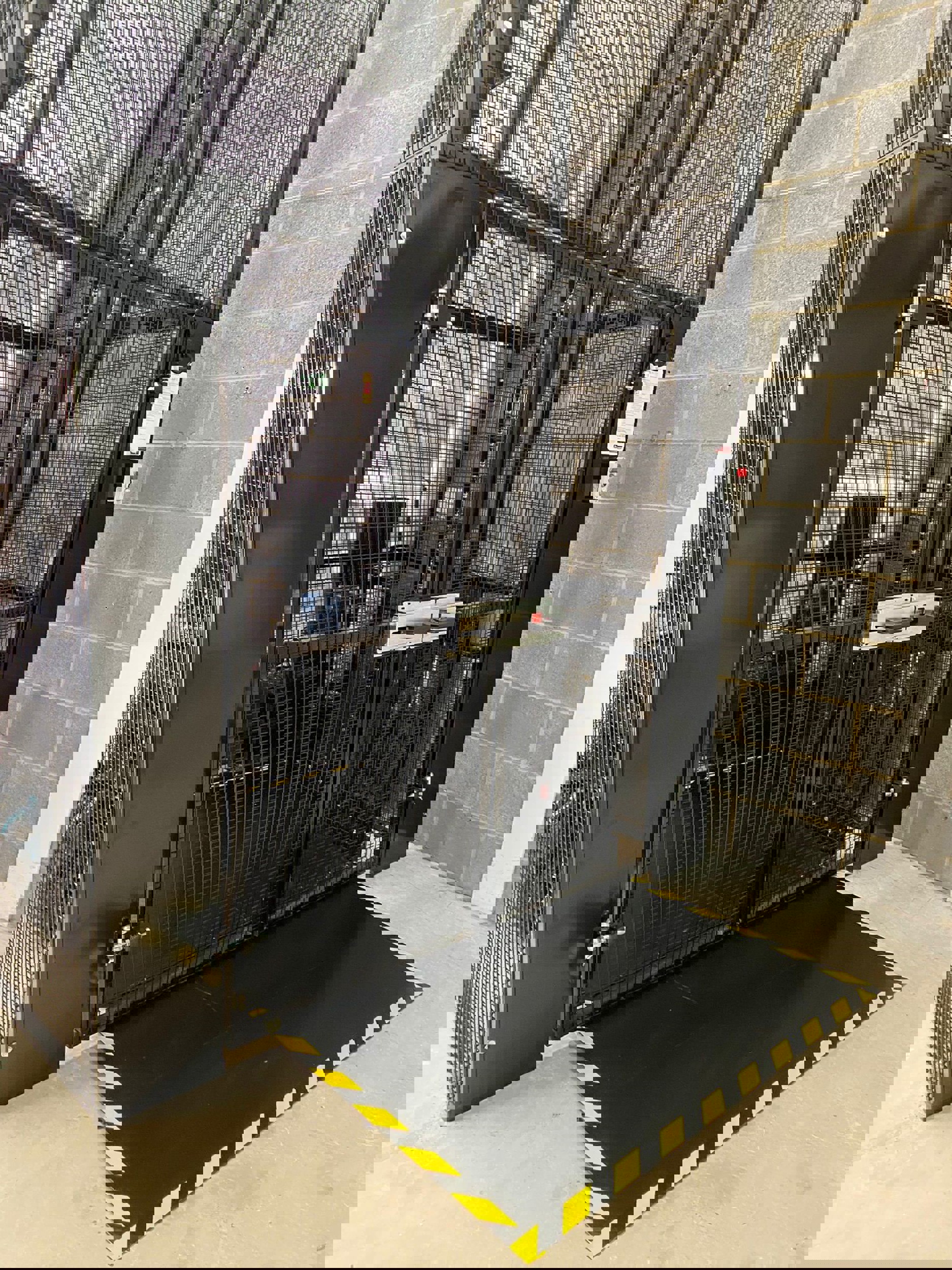

- Self-supporting mesh-clad shaft
- Constant pressure control buttons at both levels
- Standard travel height of up to 4m (increased height also available)
- Standard usable platform size of 1500mm x 1500mm
- Same-side or through-car loading
- 2 stops (ground plus 1 level)
- Electrical & mechanical interlocking gates
- Emergency stop button
- Anti-slip platform surface
Description
The MezzHD 1000kg goods lift is a simple, robust, and versatile mezzanine floor lift. Built to handle up to an impressive 1000kg, this heavy duty goods lift optimises usable storage space and streamlines operational efficiency in warehouses and industrial setups with heavy or bulky loads.
Our heavy duty goods lifts are designed and manufactured in the UK with a typical 4-week lead time. Customers will also benefit from free site assessments and a choice between standard or completely bespoke designs. All our goods lifts are fully compliant with UK and European Legislation and come with UK-wide operator training and a 12-month parts and labour warranty.
Heavy Duty Goods Lift Uses
With a standard platform size of 1500mm x 1500mm, the flexibility of our MezzHD 1000kg goods lift ensures it is suitable for most working environments. However, as all our lifts are designed and manufactured to order, bespoke platform sizes are easily available.
A heavy duty goods lift from Penny Engineering could be used for:
- Palletised goods
- Trolleys & cages
- Construction materials, tools & equipment
- Bulk packaged goods
- Machine parts
- Product deliveries
- Wheelie bins (domestic & commercial)
- General storage
Transporting Palletised Goods
Heavy pallets present a significant challenge in many industrial and warehouse settings due to their weight, size, and bulkiness, which make handling difficult, slow, and potentially dangerous.
A heavy duty goods lift greatly reduces these risks by making it easy to transport loads between floors – enhancing productivity, optimising space utilisation, and ensuring safer working conditions.
Not sure if this is the right lifting solution for you? Try our configurator! Answer a few simple questions and the configurator will suggest the right lifting solution for your needs.
CE marked and built-in conformance with:
- Machinery Directive 2006/42/EC
- Lifting Operations and Lifting Equipment Regulations 1998
- The Provision and Use of Work Equipment Regulations 1998
Downloads
Product Specific
Mezzanine Goods Lifts
![Photo 02 02 2023 12 00 24 Scaled[1]](/media/tjupetrb/photo-02-02-2023-12-00-24-scaled-1.jpg?width=500&height=500&format=webp&quality=90&v=1dc4d856f2420a0)
![Mezzpro 500Kg Goodslift[1]](/media/osxpzzfn/mezzpro-500kg-goodslift-1.jpg?width=500&height=500&format=webp&quality=90&v=1dc4d8a35b8c780)
Why Choose a Heavy Duty Goods Lift?
High load capacity
Our heavy duty goods lift holds loads of up to 1000kg, making it ideal for moving bulky and heavy items between floors in warehouses, factories, stores, and workshops.
Versatile
Suitable for a wide range of industrial setups, applications, and load types, our heavy duty goods lift can be customised to meet the specific needs of your facility.
Maximise usable space
With a mezzanine floor and the right equipment to help you move goods between levels, you can make the most of the vertical space on your premises.
Increased safety
Equipped with advanced safety features, including an emergency stop button and anti-slip platform surface, our heavy duty goods lift protects your personnel and goods.
User friendly & efficient
Our heavy duty goods lifts feature intuitive hold-to-run controls, making it easy for teams to quickly and safely transport goods and enhance overall efficiency across your operations.
Durable & reliable
All Penny Engineering goods lifts are backed by world-class British engineering, with rapid lead times and a UK-wide network of dedicated service engineers to deliver on-demand support.
Heavy Duty Goods Lifts from Penny Engineering
At Penny Engineering, we’re committed to helping customers implement health and safety best practices at their facilities – designing and manufacturing lifting equipment that is fully compliant with UK regulations and industry standards.
Your initial site survey will be carried out by our knowledgeable team, who can advise you on the best solution or layout for your requirements. With over 30 years of experience, we have the in-house design capabilities to meet your precise needs for maximising safety and operational efficiency.
All statutory examinations and preventative maintenance of our heavy duty goods lifts are managed through planned maintenance programmes. With a nationwide network of dedicated service engineers and OEM parts in stock, you can have peace of mind that your equipment is safe to use and fully certified throughout its life.
Heavy Duty Goods Lift FAQs
All our heavy duty goods lifts have a standard lead time of 4-6 weeks from placing the order.
To specify a heavy duty goods lift we need to know:
- What you want to lift
- The building opening size
- How everything is packaged
- The floor-to-floor height of the lift space
- How the lift will be loaded (e.g., wheeled or lifted on)
- The required size and dimensions of the lift
- Building layout plans (if available)
If you need assistance with specifying your MezzHD 1000kg goods lift, you can contact our sales office on 01246 811 475, fill out our contact form.
As standard, our heavy duty goods lifts can operate up to 4m or 2 stops (ground plus 1 level). You can also opt for an increased travel height of up to 8m and 3 stops (ground plus 2 levels).
